| Cooling |
|
|---|---|
| Tolerance | e8 |
| Coating | TiAlN -  |
| Steel | ||
| < 850 N/mm | < 1100 N/mm | < 1400 N/mm |
| 100 | 70 | 50 |
| Hardened steel | |||
| < 55 HRC | < 60 HRC | < 67 HRC | < 70 HRC |
| Stainless steel (VA) |
| 90 |
| Castings |
| 85 |
| Non-ferrous materials | |||
| Al | Copper | Mg | Plastics |
| 290 | 200 | ||
| Inconel |
| Abrasive material | |
| CFRP / GFRP | Graphite |
| Titanium |
|
K201273
|

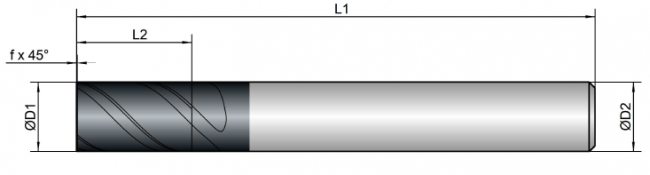

D1
|
L2
|
L1
|
D2
|
z
|
|
|
||
|---|---|---|---|---|---|---|---|---|---|
| 1/6 | 1.0 | 2.0 | 45.0 | 6.0 | 3 | 0.02 | 45 |
|
|
| 1,5/6 | 1.5 | 3.0 | 45.0 | 6.0 | 3 | 0.03 | 45 |
|
|
| 2/6 | 2.0 | 4.0 | 45.0 | 6.0 | 3 | 0.03 | 45 |
|
|
| 2,5/6 | 2.5 | 5.0 | 45.0 | 6.0 | 3 | 0.03 | 45 |
|
|
| 3/6 | 3.0 | 6.0 | 45.0 | 6.0 | 3 | 0.03 | 45 |
|
|
| 3,5/6 | 3.5 | 6.0 | 45.0 | 6.0 | 3 | 0.03 | 45 |
|
|
| 4/6 | 4.0 | 7.0 | 45.0 | 6.0 | 3 | 0.04 | 45 |
|
|
| 4,5/6 | 4.5 | 8.0 | 45.0 | 6.0 | 3 | 0.04 | 45 |
|
|
| 5/6 | 5.0 | 8.0 | 45.0 | 6.0 | 3 | 0.04 | 45 |
|
|
| 5,5/6 | 5.5 | 8.0 | 45.0 | 6.0 | 3 | 0.04 | 45 |
|
|
| 6/6 | 6.0 | 10.0 | 45.0 | 6.0 | 3 | 0.04 | 45 |
|
|
| 8/8 | 8.0 | 13.0 | 55.0 | 8.0 | 3 | 0.05 | 45 |
|
|
| 10/10 | 10.0 | 16.0 | 55.0 | 10.0 | 3 | 0.05 | 45 |
|
