K201341 | SC end mill cutter overlong MTC

Premium
No Weldon Multi-Task Cutting Universal machining Trimming Full slot
Cooling air-colled dry water min water max
Tolerance e8
Coating
K201341
K201341
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
45 35 25
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
35
Castings
55
Non-ferrous materials
Al Copper Mg Plastics
110
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

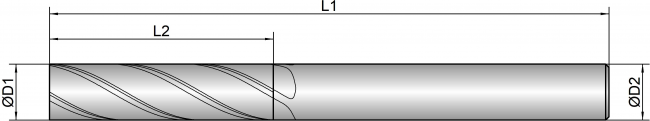

K201341
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
3X16 3.0 16.0 75.0 3.0 4 30 green
4X16 4.0 16.0 75.0 4.0 4 30 green
4X20 4.0 20.0 100.0 4.0 4 30 green
5X20 5.0 20.0 75.0 5.0 4 30 green
5X25 5.0 25.0 100.0 5.0 4 30 green
6X24 6.0 24.0 80.0 6.0 4 30 green
6X30 6.0 30.0 100.0 6.0 4 30 green
8X32 8.0 32.0 100.0 8.0 4 30 green
8X40 8.0 40.0 120.0 8.0 4 30 green
10X40 10.0 40.0 100.0 10.0 4 30 green
10X50 10.0 50.0 120.0 10.0 4 30 green
12X48 12.0 48.0 120.0 12.0 4 30 green
12X60 12.0 60.0 150.0 12.0 4 30 green
14X45 14.0 45.0 100.0 14.0 4 30 green
14X56 14.0 56.0 150.0 14.0 4 30 green
16X50 16.0 50.0 125.0 16.0 4 30 green
16X65 16.0 65.0 150.0 16.0 4 30 green
18X55 18.0 55.0 130.0 18.0 4 30 green
18X72 18.0 72.0 150.0 18.0 4 30 green
20X60 20.0 60.0 135.0 20.0 4 30 green
20X80 20.0 80.0 150.0 20.0 4 30 green
25X75 25.0 75.0 150.0 25.0 4 30 green
