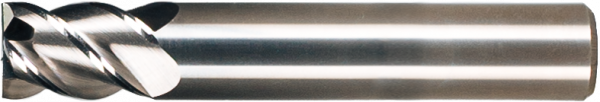

K201401 | SC end mill cutter short MTC

Premium
No Weldon Multi-Task Cutting Universal machining Trimming Full slot
Cooling air-colled dry water min water max
Tolerance e8
Coating
K201401
K201401
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
60 40 30
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
45
Castings
60
Non-ferrous materials
Al Copper Mg Plastics
140
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

K201401

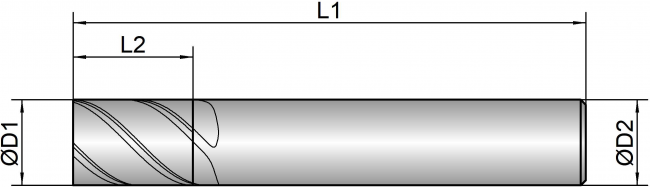

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
3 3.0 6.0 54.0 6.0 4 45 green
4 4.0 7.0 54.0 6.0 4 45 green
5 5.0 8.0 54.0 6.0 4 45 green
6 6.0 10.0 54.0 6.0 4 45 green
8 8.0 12.0 59.0 8.0 4 45 green
10 10.0 14.0 60.0 10.0 4 45 green
12 12.0 16.0 70.0 12.0 4 45 green
14 14.0 18.0 70.0 14.0 4 45 green
16 16.0 20.0 80.0 16.0 4 45 green
18 18.0 20.0 80.0 18.0 4 45 green
20 20.0 25.0 85.0 20.0 4 45 green
