K201411 | SC end mill cutter long MTC

Premium
No Weldon Multi-Task Cutting Universal machining Trimming Full slot
Cooling air-colled dry water min water max
Tolerance e8
Coating
K201411
K201411
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
60 40 30
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
45
Castings
60
Non-ferrous materials
Al Copper Mg Plastics
140
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

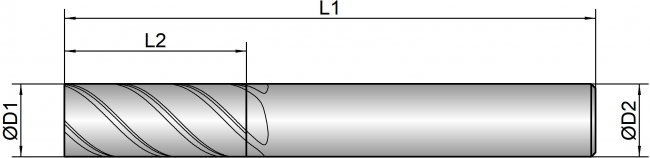

K201411
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
3 3.0 10.0 58.0 6.0 4 45 configurator
4 4.0 13.0 58.0 6.0 4 45 configurator
5 5.0 15.0 58.0 6.0 4 45 configurator
6 6.0 16.0 58.0 6.0 4 45 configurator
8 8.0 22.0 64.0 8.0 4 45 configurator
10 10.0 25.0 73.0 10.0 4 45 configurator
12 12.0 28.0 84.0 12.0 4 45 configurator
14 14.0 30.0 84.0 14.0 4 45 configurator
16 16.0 36.0 93.0 16.0 4 45 configurator
18 18.0 36.0 93.0 18.0 4 45 configurator
20 20.0 41.0 104.0 20.0 4 45 configurator
25 25.0 50.0 125.0 25.0 4 45 configurator
