| Cooling |
|
|---|---|
| Tolerance | h10 |
| Coating | Diamond -  |
| Steel | ||
| < 850 N/mm | < 1100 N/mm | < 1400 N/mm |
| Hardened steel | |||
| < 55 HRC | < 60 HRC | < 67 HRC | < 70 HRC |
| Stainless steel (VA) |
| Castings |
| Non-ferrous materials | |||
| Al | Copper | Mg | Plastics |
| 350 | |||
| Inconel |
| Abrasive material | |
| CFRP / GFRP | Graphite |
| 210 | 200 |
| Titanium |
|

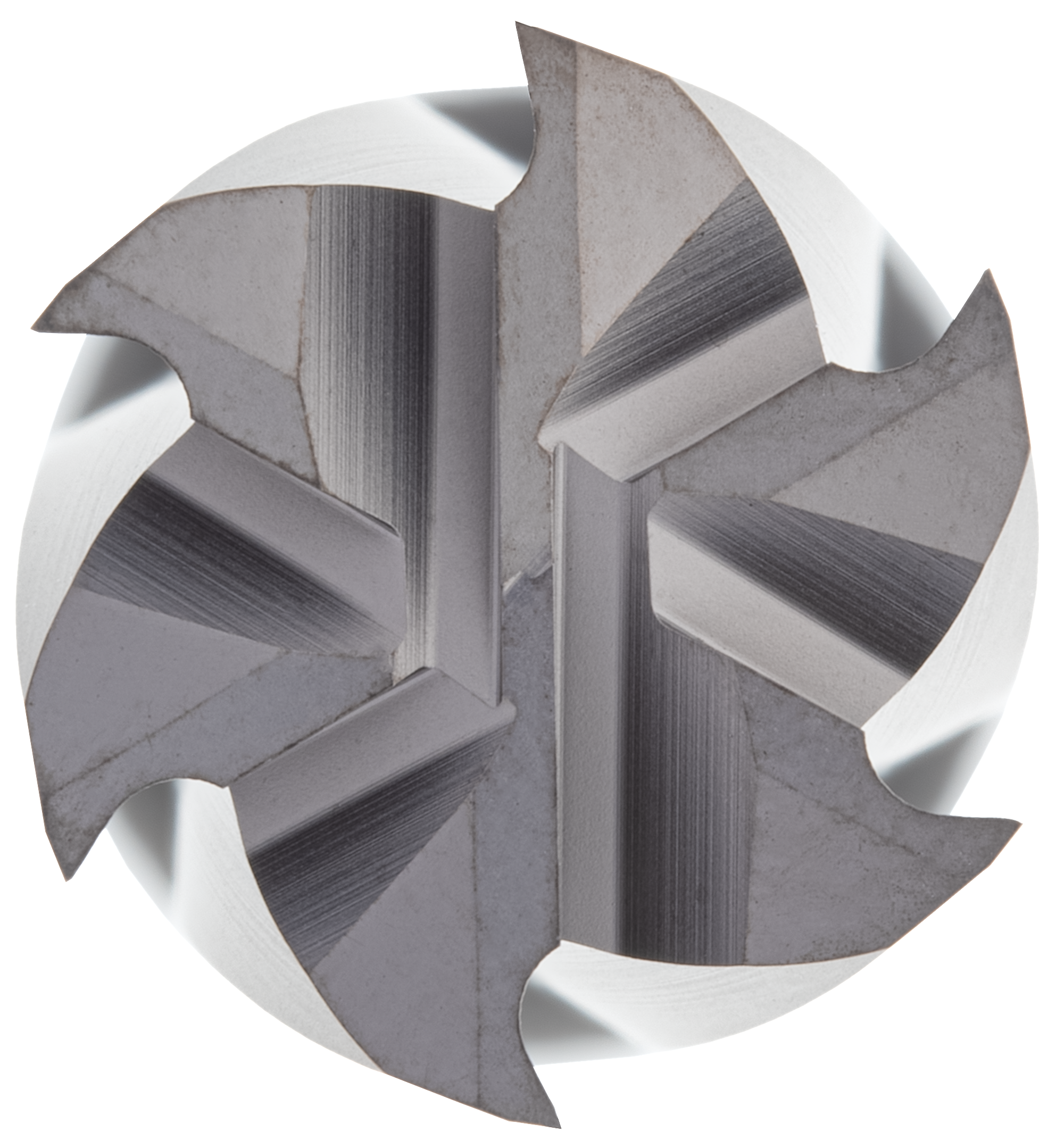

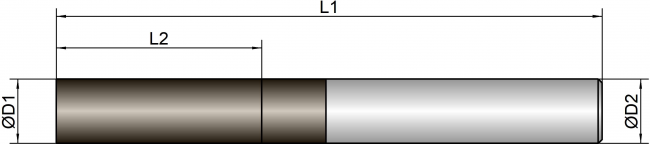

K201577
|
D1
|
L2
|
L1
|
D2
|
z
|
||
|---|---|---|---|---|---|---|---|
| 6 | 6.0 | 21.0 | 65.0 | 6.0 | 4 |
|
|
| 8 | 8.0 | 28.0 | 85.0 | 8.0 | 6 |
|
|
| 10 | 10.0 | 32.0 | 85.0 | 10.0 | 6 |
|
|
| 12 | 12.0 | 36.0 | 93.0 | 12.0 | 6 |
|
|
