K201591 | SC end mill cutter

Premium
No Weldon Universal machining Trimming Full slot
Cooling air-colled dry water min water max
Tolerance e8
Coating
K201591
K201591
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
60 40 30
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
40
Castings
60
Non-ferrous materials
Al Copper Mg Plastics
140
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

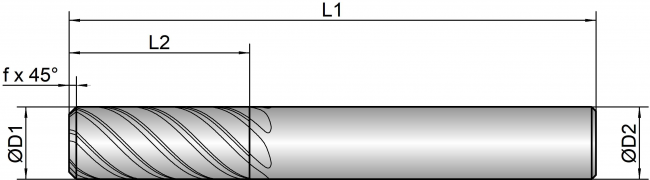

K201591
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
eckfase_laenge
spiralwinkel
5 5.0 13.0 58.0 6.0 6 0.02 45 configurator
6 6.0 16.0 58.0 6.0 6 0.03 45 configurator
7 7.0 22.0 70.0 8.0 6 0.04 45 configurator
8 8.0 22.0 70.0 8.0 6 0.04 45 configurator
9 9.0 25.0 73.0 10.0 6 0.04 45 configurator
10 10.0 25.0 73.0 10.0 6 0.05 45 configurator
12 12.0 28.0 84.0 12.0 6 0.05 45 configurator
14 14.0 30.0 84.0 14.0 6 0.06 45 configurator
16 16.0 35.0 93.0 16.0 6 0.06 45 configurator
18 18.0 35.0 93.0 18.0 8 0.07 45 configurator
20 20.0 40.0 100.0 20.0 8 0.07 45 configurator
25 25.0 55.0 125.0 25.0 8 0.08 45 configurator
