K201673 | SC mini end mill cutter 45° TiAlN

Basic
No Weldon Universal machining Trimming Full slot
Cooling air-colled dry water min water max
Tolerance e8
Coating TiAlN -
K201673
K201673
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
100 70 50
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
90
Castings
85
Non-ferrous materials
Al Copper Mg Plastics
290 200
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

K201673

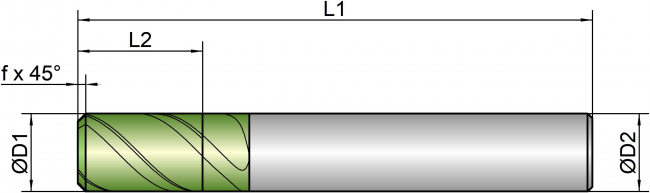

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
eckfase_laenge
spiralwinkel
1 1.0 2.0 38.0 3.0 3 0.02 45 green
1,2 1.2 2.0 38.0 3.0 3 0.02 45 green
1,5 1.5 3.0 38.0 3.0 3 0.025 45 green
2 2.0 4.0 50.0 6.0 3 0.03 45 green
2,5 2.5 5.0 50.0 6.0 3 0.03 45 green
3 3.0 6.0 50.0 6.0 3 0.03 45 green
4 4.0 7.0 50.0 6.0 3 0.04 45 green
4,5 4.5 8.0 50.0 6.0 3 0.04 45 green
5 5.0 8.0 50.0 6.0 3 0.04 45 green
5,5 5.5 8.0 50.0 6.0 3 0.04 45 green
5,75 5.75 10.0 50.0 6.0 3 0.04 45 green
6 6.0 10.0 50.0 6.0 3 0.04 45 green
7 7.0 12.0 55.0 8.0 3 0.045 45 green
7,75 7.75 12.0 55.0 8.0 3 0.05 45 red
8 8.0 13.0 55.0 8.0 3 0.05 45 green
9 9.0 14.0 66.0 10.0 3 0.05 45 green
9,7 9.7 16.0 66.0 10.0 3 0.05 45 green
10 10.0 16.0 66.0 10.0 3 0.05 45 green
12 12.0 16.0 73.0 12.0 3 0.05 45 green
14 14.0 16.0 83.0 14.0 3 0.06 45 green
16 16.0 18.0 80.0 16.0 3 0.06 45 green
