K201719 | SC end mill cutter short TiSiN MTC / ETC / HPC

Expert
Weldon HB Extended Trochoidal Cutting High Performance Cutting Multi-Task Cutting Universal machining Unequal tooth pitch Trimming Full slot
Cooling air-colled dry water min water max
Tolerance e8
Coating TiSiN -
K201719
K201719
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
230 185 150
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
75
Castings
260
Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

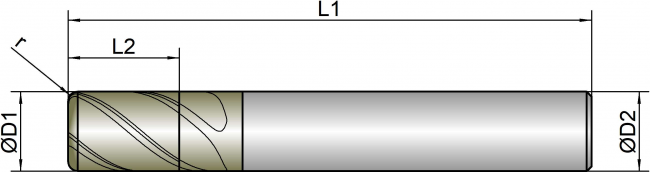

K201719
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
3 3.0 6.0 54.0 6.0 4 0.10 40 red
4 4.0 8.0 54.0 6.0 4 0.10 40 red
5 5.0 9.0 54.0 6.0 4 0.20 40 red
6 6.0 10.0 54.0 6.0 4 0.20 40 red
8 8.0 12.0 58.0 8.0 4 0.20 40 red
10 10.0 14.0 66.0 10.0 4 0.20 40 red
12 12.0 16.0 73.0 12.0 4 0.20 40 red
16 16.0 22.0 82.0 16.0 4 0.30 40 red
20 20.0 26.0 92.0 20.0 4 0.30 40 red
