K201749 | SC end mill cutter 5xD TiSiN ETC

Expert
Weldon HB Extended Trochoidal Cutting Universal machining Unequal tooth pitch Trimming Chip breaking 5xD
Cooling air-cooled dry water min water max
Tolerance e8
Coating TiSiN -
K201749
K201749
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
290 210 120
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
150
Castings

Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

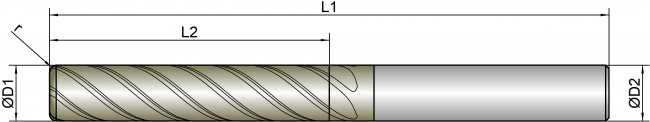

K201749
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
8 8.0 40.0 90.0 8.0 5 0.20 40 green
10 10.0 50.0 100.0 10.0 5 0.20 40 green
12 12.0 60.0 119.0 12.0 5 0.20 40 green
16 16.0 80.0 136.0 16.0 5 0.30 40 green
20 20.0 100.0 160.0 20.0 5 0.30 40 orange
