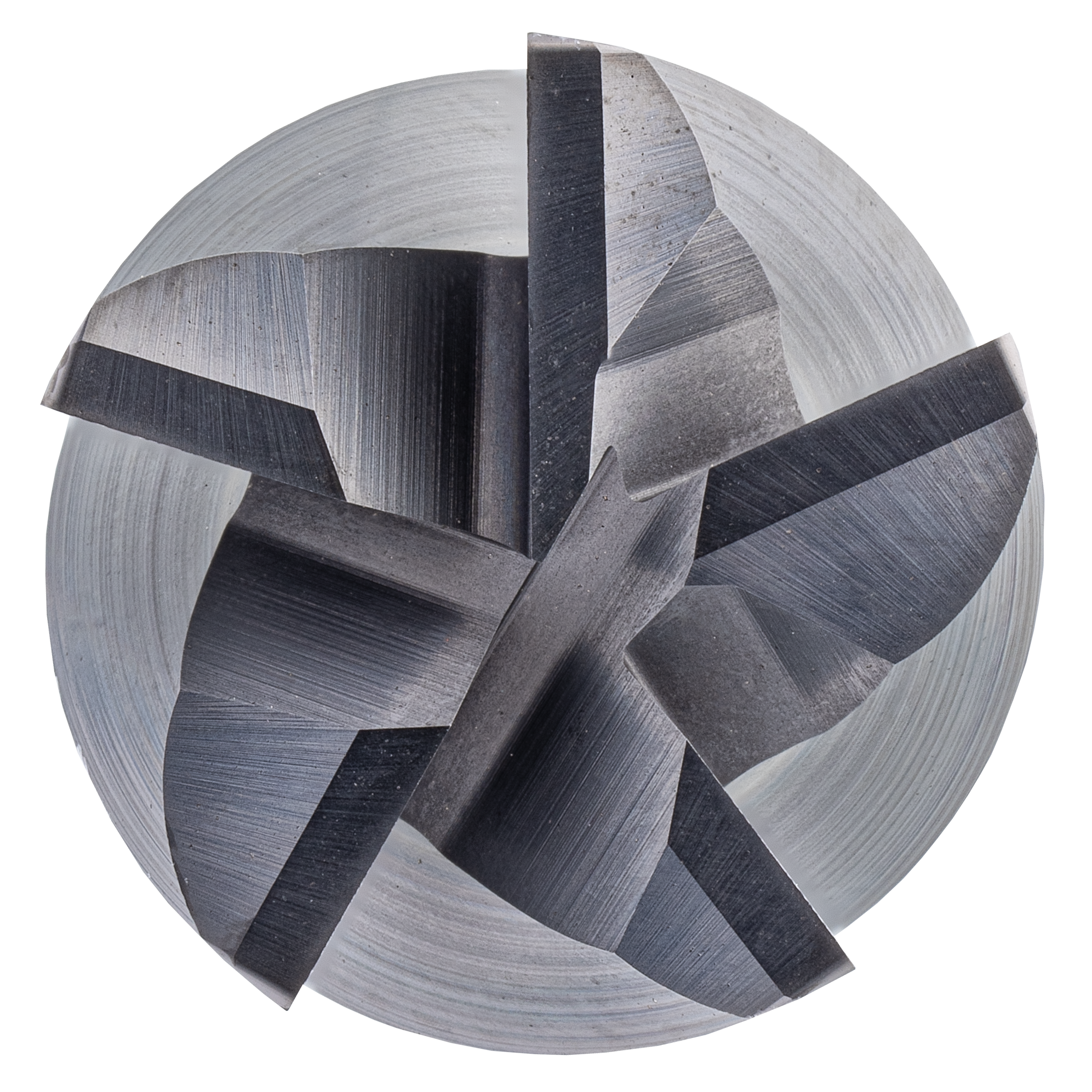

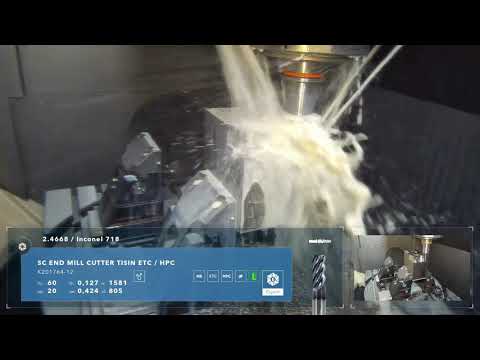

K201764 | SC end mill cutter TiSiN ETC / HPC

Expert
Weldon HB Extended Trochoidal Cutting High Performance Cutting Unequal tooth pitch Trimming
Cooling water max
Tolerance e8
Coating TiSiN -
K201764
K201764
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm

Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)

Castings

Non-ferrous materials
Al Copper Mg Plastics

Inconel
35
Abrasive material
CFRP / GFRP Graphite

Titanium

K201764

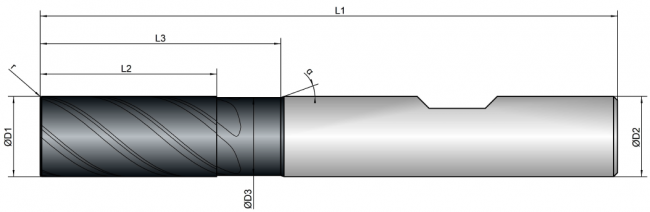

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
6 6.0 5.8 13.0 19.0 57.0 6.0 5 0.10 40 green
8 8.0 7.7 19.0 25.0 63.0 8.0 5 0.20 40 green
10 10.0 9.7 22.0 30.0 72.0 10.0 5 0.20 40 green
12 12.0 11.6 26.0 36.0 83.0 12.0 5 0.20 40 green
16 16.0 15.5 36.0 42.0 92.0 16.0 5 0.30 40 green
20 20.0 19.5 41.0 52.0 104.0 20.0 5 0.30 40 orange
