K201784 | SC end mill cutter long TiSiN MTC / ETC / HPC

Expert
Weldon HB Extended Trochoidal Cutting High Performance Cutting Multi-Task Cutting Unequal tooth pitch Trimming Full slot Dynamic helical pitch
Cooling water min water max
Tolerance e8
Coating TiSiN -
K201784
K201784
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
  185 175
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
100
Castings

Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

K201784

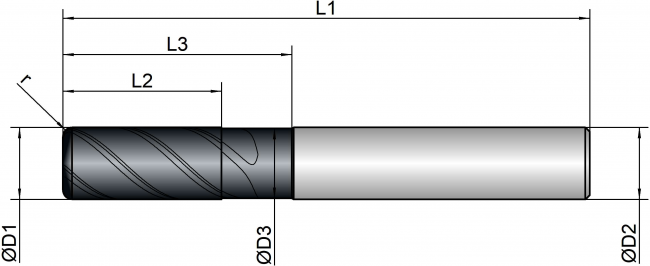

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
3/0,1 3.0 2.8 8.0 20.0 58.0 6.0 4 0.10 50 green
4/0,2 4.0 3.8 11.0 20.0 58.0 6.0 4 0.20 50 green
5/0,2 5.0 4.8 13.0 20.0 58.0 6.0 4 0.20 50 green
6/0,2 6.0 5.8 13.0 20.0 58.0 6.0 4 0.20 50 green
8/0,3 8.0 7.7 19.0 25.0 63.0 8.0 4 0.30 50 green
10/0,3 10.0 9.7 22.0 32.0 73.0 10.0 4 0.30 50 green
12/0,3 12.0 11.6 26.0 38.0 84.0 12.0 4 0.30 50 green
16/0,5 16.0 15.5 32.0 44.0 92.0 16.0 4 0.50 50 green
20/0,5 20.0 19.5 38.0 54.0 104.0 20.0 4 0.50 50 green
25/0,5 25.0 24.5 45.0 65.0 125.0 25.0 4 0.50 50 orange
