K201799 | SC end mill cutter 3xD TiSiN ETC

Expert
Weldon HB Extended Trochoidal Cutting Unequal tooth pitch Trimming Chip breaking 3xD Dynamic helical pitch
Cooling air-cooled dry water min water max
Tolerance e8
Coating TiSiN -
K201799
K201799
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
  230 180
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
200
Castings

Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

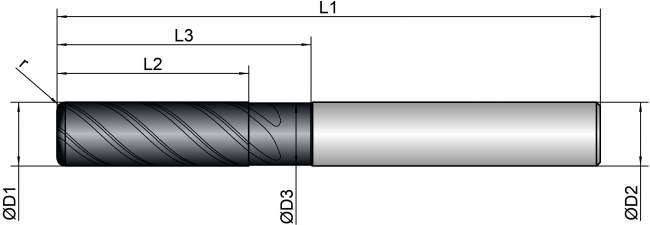

K201799
D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
6/0,2 6.0 5.8 18.0 25.0 65.0 6.0 5 0.20 50 green
8/0,3 8.0 7.7 24.0 32.0 70.0 8.0 5 0.30 50 green
10/0,3 10.0 9.7 30.0 40.0 85.0 10.0 5 0.30 50 green
12/0,3 12.0 11.6 36.0 46.0 100.0 12.0 5 0.30 50 orange
16/0,5 16.0 15.5 48.0 58.0 110.0 16.0 5 0.50 50 green
20/0,5 20.0 19.5 60.0 70.0 126.0 20.0 5 0.50 50 green
