K201809 | SC end mill cutter 3xD TiSiN ETC

Expert
Weldon HB Extended Trochoidal Cutting Unequal tooth pitch Trimming 3xD
Cooling air-colled dry water min water max
Tolerance e8
Coating TiSiN -
K201809
K201809
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
  240 210
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
220
Castings

Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

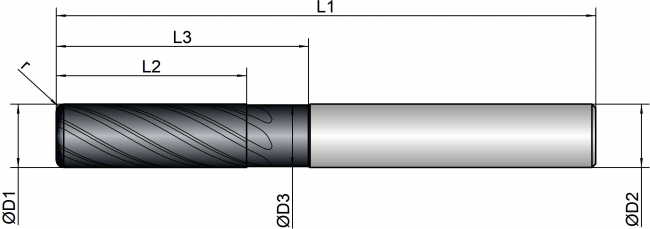

K201809
D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
6/0,15 6.0 5.8 18.0 25.0 65.0 6.0 7 0.15 42.5 green
8/0,15 8.0 7.7 24.0 32.0 70.0 8.0 7 0.15 42.5 green
10/0,2 10.0 9.7 30.0 40.0 85.0 10.0 7 0.20 42.5 green
12/0,2 12.0 11.6 36.0 46.0 100.0 12.0 7 0.20 42.5 green
16/0,3 16.0 15.5 48.0 58.0 110.0 16.0 7 0.30 42.5 green
20/0,3 20.0 19.5 60.0 70.0 125.0 20.0 7 0.30 42.5 green
