| Cooling |
|
|---|---|
| Tolerance | d11 |
| Coating |
| Steel | ||
| < 850 N/mm | < 1100 N/mm | < 1400 N/mm |
| Hardened steel | |||
| < 55 HRC | < 60 HRC | < 67 HRC | < 70 HRC |
| Stainless steel (VA) |
| Castings |
| Non-ferrous materials | |||
| Al | Copper | Mg | Plastics |
| 250 | 280 | ||
| Inconel |
| Abrasive material | |
| CFRP / GFRP | Graphite |
| Titanium |
|

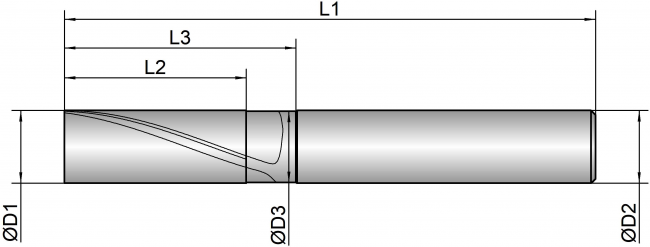

K201816
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
|
||
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 4.0 | 3.8 | 13.0 | 16.0 | 54.0 | 4.0 | 2 | 20 |
|
|
| 5 | 5.0 | 4.8 | 15.0 | 18.0 | 54.0 | 5.0 | 2 | 20 |
|
|
| 6 | 6.0 | 5.8 | 16.0 | 21.0 | 65.0 | 6.0 | 2 | 20 |
|
|
| 8 | 8.0 | 7.8 | 22.0 | 27.0 | 70.0 | 8.0 | 2 | 20 |
|
|
| 10 | 10.0 | 9.8 | 25.0 | 32.0 | 73.0 | 10.0 | 2 | 20 |
|
|
| 12 | 12.0 | 11.8 | 28.0 | 38.0 | 84.0 | 12.0 | 3 | 20 |
|
|
| 14 | 14.0 | 13.8 | 30.0 | 42.0 | 84.0 | 14.0 | 3 | 20 |
|
|
| 16 | 16.0 | 15.8 | 36.0 | 44.0 | 93.0 | 16.0 | 3 | 20 |
|
|
| 20 | 20.0 | 19.8 | 41.0 | 54.0 | 104.0 | 20.0 | 3 | 20 |
|
