| Cooling |
|
|---|---|
| Tolerance | e8 |
| Coating | TiN -  |
| Steel | ||
| < 850 N/mm | < 1100 N/mm | < 1400 N/mm |
| Hardened steel | |||
| < 55 HRC | < 60 HRC | < 67 HRC | < 70 HRC |
| Stainless steel (VA) |
| Castings |
| Non-ferrous materials | |||
| Al | Copper | Mg | Plastics |
| 320 | 350 | ||
| Inconel |
| Abrasive material | |
| CFRP / GFRP | Graphite |
| Titanium |
|

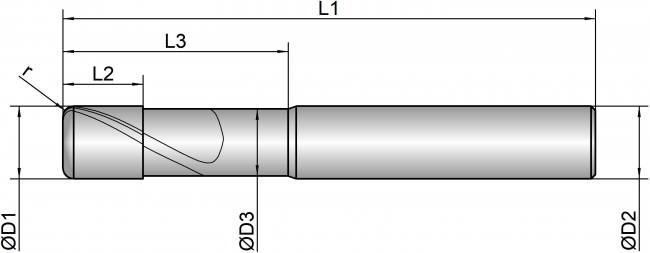

K202003
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/0,3 | 3.0 | 2.7 | 4.0 | 14.0 | 50.0 | 3.0 | 2 | 0.30 | 30 |
|
|
| 4/0,3 | 4.0 | 3.7 | 5.0 | 16.0 | 50.0 | 4.0 | 2 | 0.30 | 30 |
|
|
| 5/0,3 | 5.0 | 4.6 | 6.0 | 18.0 | 54.0 | 5.0 | 2 | 0.30 | 30 |
|
|
| 6/0,3 | 6.0 | 5.5 | 7.0 | 21.0 | 58.0 | 6.0 | 2 | 0.30 | 30 |
|
|
| 6/1 | 6.0 | 5.5 | 7.0 | 21.0 | 58.0 | 6.0 | 2 | 1.00 | 30 |
|
|
| 6/2 | 6.0 | 5.5 | 7.0 | 21.0 | 58.0 | 6.0 | 2 | 2.00 | 30 |
|
|
| 8/0,3 | 8.0 | 7.4 | 9.0 | 27.0 | 64.0 | 8.0 | 2 | 0.30 | 30 |
|
|
| 8/1 | 8.0 | 7.4 | 9.0 | 27.0 | 64.0 | 8.0 | 2 | 1.00 | 30 |
|
|
| 8/2 | 8.0 | 7.4 | 9.0 | 27.0 | 64.0 | 8.0 | 2 | 2.00 | 30 |
|
|
| 10/0,3 | 10.0 | 9.2 | 11.0 | 32.0 | 73.0 | 10.0 | 2 | 0.30 | 30 |
|
|
| 10/1,5 | 10.0 | 9.2 | 11.0 | 32.0 | 73.0 | 10.0 | 2 | 1.50 | 30 |
|
|
| 10/3 | 10.0 | 9.2 | 11.0 | 32.0 | 73.0 | 10.0 | 2 | 3.00 | 30 |
|
|
| 12/0,5 | 12.0 | 11.0 | 12.0 | 38.0 | 84.0 | 12.0 | 2 | 0.50 | 30 |
|
|
| 12/1,5 | 12.0 | 11.0 | 12.0 | 38.0 | 84.0 | 12.0 | 2 | 1.50 | 30 |
|
|
| 12/4 | 12.0 | 11.0 | 12.0 | 38.0 | 84.0 | 12.0 | 2 | 4.00 | 30 |
|
|
| 16/1 | 16.0 | 15.0 | 16.0 | 44.0 | 93.0 | 16.0 | 2 | 1.00 | 30 |
|
|
| 16/2 | 16.0 | 15.0 | 16.0 | 44.0 | 93.0 | 16.0 | 2 | 2.00 | 30 |
|
|
| 16/5 | 16.0 | 15.0 | 16.0 | 44.0 | 93.0 | 16.0 | 2 | 5.00 | 30 |
|
