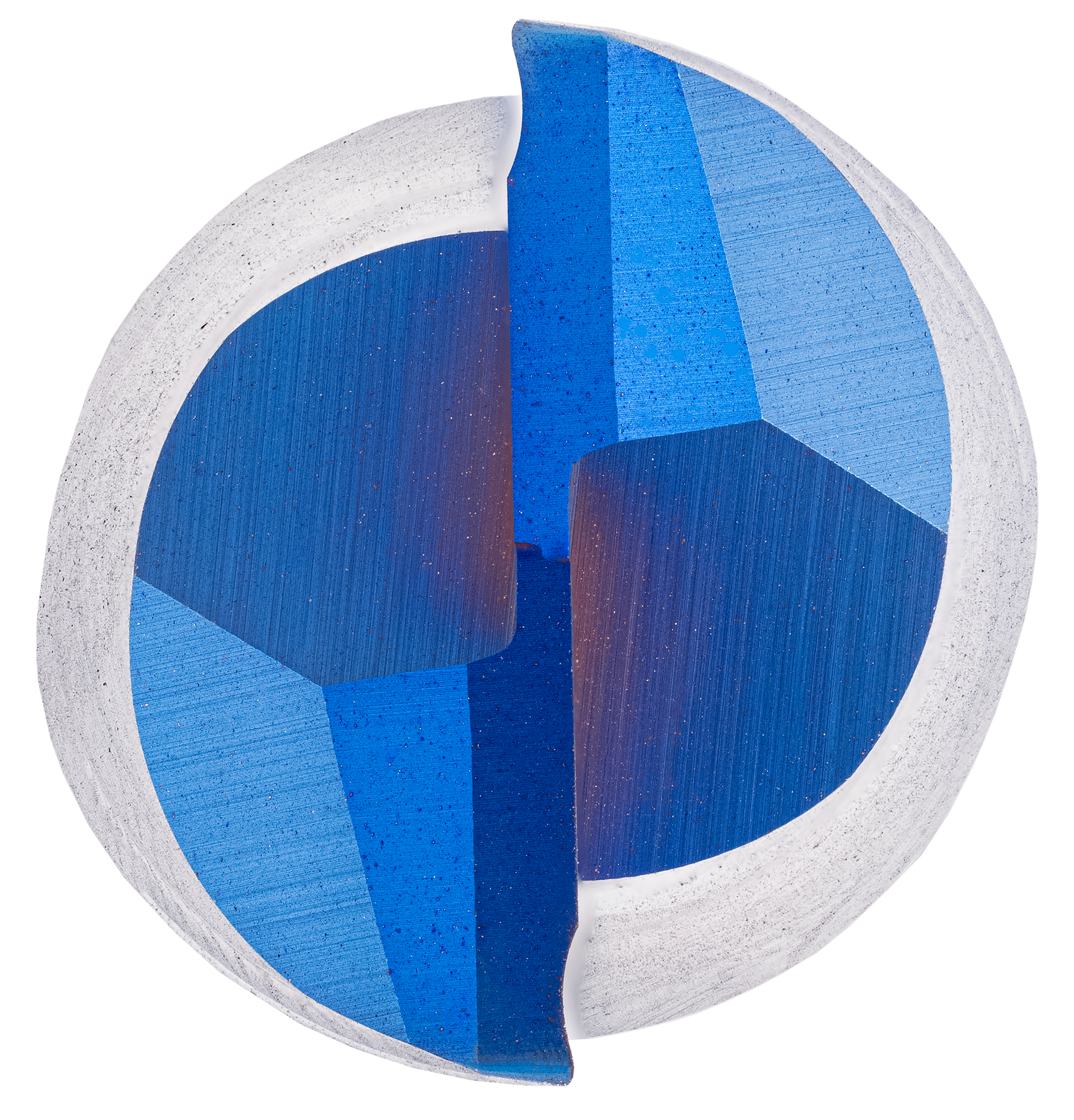

K202092 | SC micro torus cutter TiSiN HSC

Expert
No Weldon High Speed Cutting Multipass milling Trimming Full slot
Cooling air-cooled dry water min water max
Tolerance 0-0,01
Coating TiSiN -
K202092
K202092
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
225 210 200
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC
125 75 55 40
Stainless steel (VA)
100
Castings

Non-ferrous materials
Al Copper Mg Plastics
  150
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

K202092

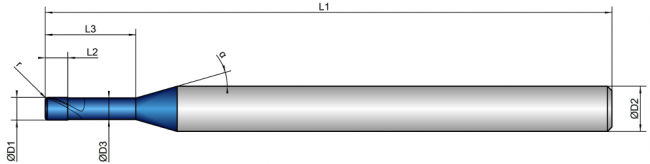

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
0,8X4 0.8 0.78 0.8 4.0 50.0 4.0 2 0.20 30 green
0,8X6 0.8 0.78 0.8 6.0 50.0 4.0 2 0.20 30 green
1X2 1.0 0.95 1.0 2.0 50.0 4.0 2 0.20 30 green
1X4 1.0 0.95 1.0 4.0 50.0 4.0 2 0.20 30 green
1X6 1.0 0.95 1.0 6.0 50.0 4.0 2 0.20 30 green
1X8 1.0 0.95 1.0 8.0 50.0 4.0 2 0.20 30 green
1X10 1.0 0.95 1.0 10.0 50.0 4.0 2 0.20 30 green
1X12 1.0 0.95 1.0 12.0 54.0 4.0 2 0.20 30 green
1X16 1.0 0.95 1.0 16.0 60.0 4.0 2 0.20 30 green
1X20 1.0 0.95 1.0 20.0 60.0 4.0 2 0.20 30 green
1,2X6 1.2 1.14 1.2 6.0 50.0 4.0 2 0.20 30 green
1,2X12 1.2 1.14 1.2 12.0 54.0 4.0 2 0.20 30 green
1,2X20 1.2 1.14 1.2 20.0 60.0 4.0 2 0.20 30 green
1,5X4 1.5 1.44 1.5 4.0 50.0 4.0 2 0.20 30 green
1,5X6 1.5 1.44 1.5 6.0 50.0 4.0 2 0.20 30 green
1,5X8 1.5 1.44 1.5 8.0 50.0 4.0 2 0.20 30 green
1,5X10 1.5 1.44 1.5 10.0 50.0 4.0 2 0.20 30 green
1,5X12 1.5 1.44 1.5 12.0 54.0 4.0 2 0.20 30 green
1,5X16 1.5 1.44 1.5 16.0 54.0 4.0 2 0.20 30 green
1,5X20 1.5 1.44 1.5 20.0 60.0 4.0 2 0.20 30 green
2X4 2.0 1.91 2.0 4.0 50.0 4.0 2 0.20 30 green
2X6 2.0 1.91 2.0 6.0 50.0 4.0 2 0.20 30 green
2X8 2.0 1.91 2.0 8.0 50.0 4.0 2 0.20 30 green
2X10 2.0 1.91 2.0 10.0 50.0 4.0 2 0.20 30 green
2X12 2.0 1.91 2.0 12.0 54.0 4.0 2 0.20 30 green
2X16 2.0 1.91 2.0 16.0 54.0 4.0 2 0.20 30 green
2X20 2.0 1.91 2.0 20.0 60.0 4.0 2 0.20 30 green
2X26 2.0 1.91 2.0 26.0 70.0 4.0 2 0.20 30 green
