K202153 | SC torus cutter long TiAlN HSC / HPC

Premium
No Weldon High Speed Cutting High Performance Cutting Multipass milling Trimming
Cooling air-colled dry water min water max
Tolerance e8
Coating TiAlN -
K202153
K202153
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
110 80
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
90
Castings
100
Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

K202153

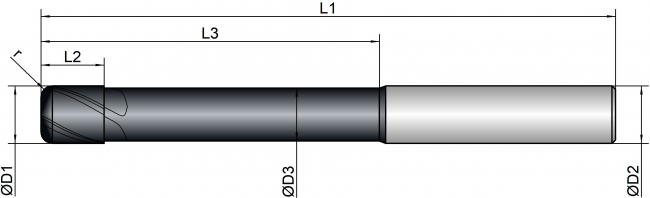

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
1/0,1 1.0 0.85 1.5 20.0 75.0 3.0 4 0.10 30 green
1/0,2 1.0 0.85 1.5 20.0 75.0 3.0 4 0.20 30 green
2/0,2 2.0 1.8 2.5 25.0 75.0 3.0 4 0.20 30 green
2/0,3 2.0 1.8 2.5 25.0 75.0 3.0 4 0.30 30 green
2/0,5 2.0 1.8 2.5 25.0 75.0 3.0 4 0.50 30 green
3/0,3 3.0 2.7 4.0 32.0 75.0 3.0 4 0.30 30 green
3/0,5 3.0 2.7 4.0 32.0 75.0 3.0 4 0.50 30 green
3/1 3.0 2.7 4.0 32.0 75.0 3.0 4 1.00 30 green
4/0,4 4.0 3.7 5.0 36.0 75.0 4.0 4 0.40 30 green
4/0,5 4.0 3.7 5.0 36.0 75.0 4.0 4 0.50 30 green
4/1 4.0 3.7 5.0 36.0 75.0 4.0 4 1.00 30 green
5/0,5 5.0 4.6 6.0 40.0 75.0 5.0 4 0.50 30 green
5/1 5.0 4.6 6.0 40.0 75.0 5.0 4 1.00 30 green
6/0,5 6.0 5.5 7.0 44.0 80.0 6.0 4 0.50 30 green
6/1 6.0 5.5 7.0 44.0 80.0 6.0 4 1.00 30 green
6/1,5 6.0 5.5 7.0 44.0 80.0 6.0 4 1.50 30 green
8/0,5 8.0 7.4 9.0 54.0 100.0 8.0 4 0.50 30 green
8/1 8.0 7.4 9.0 54.0 100.0 8.0 4 1.00 30 green
8/1,5 8.0 7.4 9.0 54.0 100.0 8.0 4 1.50 30 green
8/2 8.0 7.4 9.0 54.0 100.0 8.0 4 2.00 30 green
10/0,5 10.0 9.2 11.0 60.0 100.0 10.0 4 0.50 30 green
10/1 10.0 9.2 11.0 60.0 100.0 10.0 4 1.00 30 green
10/1,5 10.0 9.2 11.0 60.0 100.0 10.0 4 1.50 30 green
10/2 10.0 9.2 11.0 60.0 100.0 10.0 4 2.00 30 green
12/0,5 12.0 11.0 12.0 75.0 120.0 12.0 4 0.50 30 green
12/1 12.0 11.0 12.0 75.0 120.0 12.0 4 1.00 30 green
12/1,5 12.0 11.0 12.0 75.0 120.0 12.0 4 1.50 30 green
12/2 12.0 11.0 12.0 75.0 120.0 12.0 4 2.00 30 green
12/5 12.0 11.0 12.0 75.0 120.0 12.0 4 5.00 30 green
16/1 16.0 15.0 16.0 92.0 150.0 16.0 4 1.00 30 green
16/2 16.0 15.0 16.0 92.0 150.0 16.0 4 2.00 30 green
16/6 16.0 15.0 16.0 92.0 150.0 16.0 4 6.00 30 green
20/1 20.0 18.5 20.0 92.0 150.0 20.0 4 1.00 30 green
20/2,5 20.0 18.5 20.0 92.0 150.0 20.0 4 2.50 30 green
