K202163 | SC torus cutter short TiAlN HSC

Premium
No Weldon High Speed Cutting Universal machining Multipass milling Trimming Full slot
Cooling air-colled dry water min water max
Tolerance e8
Coating TiAlN -
K202163
K202163
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
120 80 70
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC
40 35
Stainless steel (VA)
85
Castings
95
Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

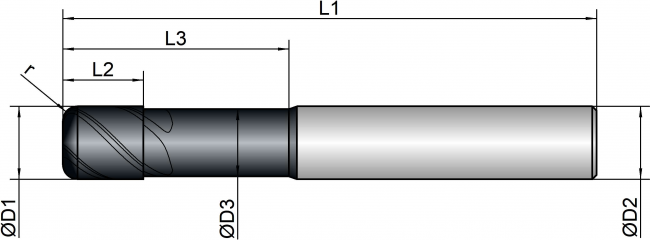

K202163
D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
3/0,3 3.0 2.7 4.0 14.0 50.0 3.0 4 0.30 45 green
3/0,5 3.0 2.7 4.0 14.0 50.0 3.0 4 0.50 45 green
3/1 3.0 2.7 4.0 14.0 50.0 3.0 4 1.00 45 green
4/0,4 4.0 3.7 5.0 16.0 50.0 4.0 4 0.40 45 green
4/0,5 4.0 3.7 5.0 16.0 50.0 4.0 4 0.50 45 green
4/1 4.0 3.7 5.0 16.0 50.0 4.0 4 1.00 45 green
5/0,5 5.0 4.6 6.0 18.0 54.0 5.0 4 0.50 45 green
5/1 5.0 4.6 6.0 18.0 54.0 5.0 4 1.00 45 green
6/0,5 6.0 5.5 7.0 21.0 58.0 6.0 4 0.50 45 green
6/1 6.0 5.5 7.0 21.0 58.0 6.0 4 1.00 45 green
6/1,5 6.0 5.5 7.0 21.0 58.0 6.0 4 1.50 45 green
8/0,5 8.0 7.4 9.0 27.0 64.0 8.0 4 0.50 45 green
8/1 8.0 7.4 9.0 27.0 64.0 8.0 4 1.00 45 green
8/1,5 8.0 7.4 9.0 27.0 64.0 8.0 4 1.50 45 green
8/2 8.0 7.4 9.0 27.0 64.0 8.0 4 2.00 45 green
10/0,5 10.0 9.2 11.0 32.0 73.0 10.0 4 0.50 45 green
10/1 10.0 9.2 11.0 32.0 73.0 10.0 4 1.00 45 green
10/1,5 10.0 9.2 11.0 32.0 73.0 10.0 4 1.50 45 green
10/2 10.0 9.2 11.0 32.0 73.0 10.0 4 2.00 45 green
12/0,5 12.0 11.0 12.0 38.0 84.0 12.0 4 0.50 45 green
12/1 12.0 11.0 12.0 38.0 84.0 12.0 4 1.00 45 green
12/1,5 12.0 11.0 12.0 38.0 84.0 12.0 4 1.50 45 green
12/2 12.0 11.0 12.0 38.0 84.0 12.0 4 2.00 45 green
16/1 16.0 15.0 16.0 44.0 93.0 16.0 4 1.00 45 green
16/2 16.0 15.0 16.0 44.0 93.0 16.0 4 2.00 45 green
20/1 20.0 18.5 20.0 50.0 104.0 20.0 4 1.00 45 green
20/2,5 20.0 18.5 20.0 50.0 104.0 20.0 4 2.50 45 green
