K202202 | SC torus cutter overlong TiAlN HSC

Premium
No Weldon High Speed Cutting Universal machining Multipass milling Trimming Full slot
Cooling air-colled dry water min water max
Tolerance e8
Coating TiAlN -
K202202
K202202
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
75 55 50
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC
28 23
Stainless steel (VA)
65
Castings
70
Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

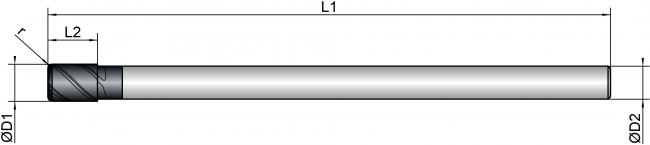

K202202
D1
schneiden_durchmesser
D1
schneiden_durchmesser_kopf
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
7/0,5 7.0 7.2 9.0 121.0 6.0 4 0.50 45 green
7/1 7.0 7.2 9.0 121.0 6.0 4 1.00 45 green
7/1,5 7.0 7.2 9.0 121.0 6.0 4 1.50 45 green
9/0,5 9.0 9.2 12.0 136.0 8.0 4 0.50 45 green
9/1 9.0 9.2 12.0 136.0 8.0 4 1.00 45 green
9/1,5 9.0 9.2 12.0 136.0 8.0 4 1.50 45 green
11/1 11.0 11.2 15.0 150.0 10.0 4 1.00 45 green
11/1,5 11.0 11.2 15.0 150.0 10.0 4 1.50 45 green
11/2 11.0 11.2 15.0 150.0 10.0 4 2.00 45 green
13/1 13.0 13.2 18.0 160.0 12.0 4 1.00 45 green
13/1,5 13.0 13.2 18.0 160.0 12.0 4 1.50 45 orange
13/2 13.0 13.2 18.0 160.0 12.0 4 2.00 45 green
15/1 15.0 15.2 21.0 160.0 14.0 4 1.00 45 orange
15/1,5 15.0 15.2 21.0 160.0 14.0 4 1.50 45 green
15/2 15.0 15.2 21.0 160.0 14.0 4 2.00 45 orange
17/1 17.0 17.2 24.0 180.0 16.0 4 1.00 45 orange
17/1,5 17.0 17.2 24.0 180.0 16.0 4 1.50 45 green
17/2 17.0 17.2 24.0 180.0 16.0 4 2.00 45 orange
17/3 17.0 17.2 24.0 180.0 16.0 4 3.00 45 green
