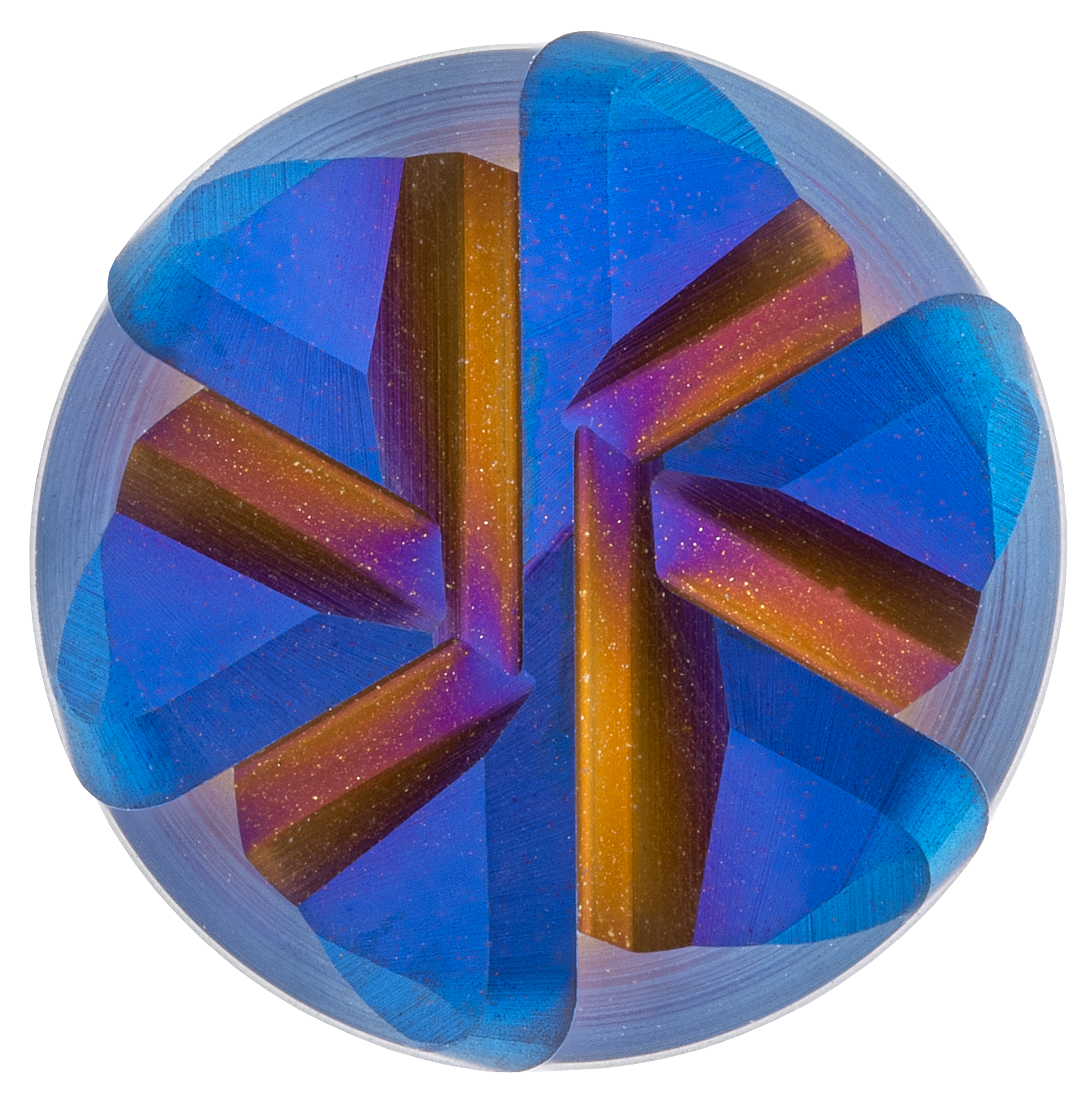

K202253 | Formmaker Z4-6 1xD ADN
| Kühlung |
|
|---|---|
| Toleranz | e8 |
| Beschichtung | AlphaDura Navy |
| Downloads | Katalogseite |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Zum Fräsen von gehärteten Stählen entwickeltes Ultrafeinstkornsubstrat
- Angepasster Spanwinkel für sicheres Fräsen bis 70 HRC
- Definierte Schneidkantenpräparation für homogenen Verschleiß
- Radiustoleranz r ≤ 1,5 mm: ± 0,003 mm
- Radiustoleranz r > 1,5 mm: ± 0,005 mm
- Abzeilen von 3D-Konturen
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

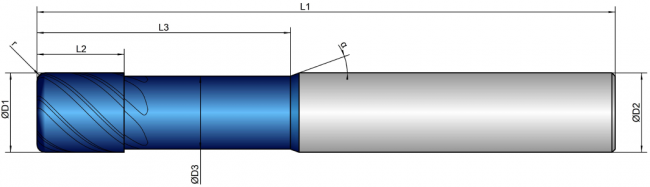

K202253
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/0,3 | 3,0 | 2,7 | 4,0 | 14,0 | 50,0 | 3,0 | 4 | 0,30 | 45 | 20 |
|
|
| 3/0,5 | 3,0 | 2,7 | 4,0 | 14,0 | 50,0 | 3,0 | 4 | 0,50 | 45 | 20 |
|
|
| 3/1 | 3,0 | 2,7 | 4,0 | 14,0 | 50,0 | 3,0 | 4 | 1,00 | 45 | 20 |
|
|
| 4/0,4 | 4,0 | 3,7 | 5,0 | 16,0 | 50,0 | 4,0 | 4 | 0,40 | 45 | 20 |
|
|
| 4/0,5 | 4,0 | 3,7 | 5,0 | 16,0 | 50,0 | 4,0 | 4 | 0,50 | 45 | 20 |
|
|
| 4/1 | 4,0 | 3,7 | 5,0 | 16,0 | 50,0 | 4,0 | 4 | 1,00 | 45 | 20 |
|
|
| 5/0,5 | 5,0 | 4,6 | 6,0 | 18,0 | 54,0 | 5,0 | 4 | 0,50 | 45 | 20 |
|
|
| 5/1 | 5,0 | 4,6 | 6,0 | 18,0 | 54,0 | 5,0 | 4 | 1,00 | 45 | 20 |
|
|
| 6/0,5 | 6,0 | 5,5 | 7,0 | 21,0 | 58,0 | 6,0 | 6 | 0,50 | 45 | 20 |
|
|
| 6/0,8 | 6,0 | 5,5 | 7,0 | 21,0 | 58,0 | 6,0 | 6 | 0,80 | 45 | 20 |
|
|
| 6/1 | 6,0 | 5,5 | 7,0 | 21,0 | 58,0 | 6,0 | 6 | 1,00 | 45 | 20 |
|
|
| 6/1,5 | 6,0 | 5,5 | 7,0 | 21,0 | 58,0 | 6,0 | 6 | 1,50 | 45 | 20 |
|
|
| 8/0,5 | 8,0 | 7,4 | 9,0 | 27,0 | 64,0 | 8,0 | 6 | 0,50 | 45 | 20 |
|
|
| 8/0,8 | 8,0 | 7,4 | 9,0 | 27,0 | 64,0 | 8,0 | 6 | 0,80 | 45 | 20 |
|
|
| 8/1 | 8,0 | 7,4 | 9,0 | 27,0 | 64,0 | 8,0 | 6 | 1,00 | 45 | 20 |
|
|
| 8/1,5 | 8,0 | 7,4 | 9,0 | 27,0 | 64,0 | 8,0 | 6 | 1,50 | 45 | 20 |
|
|
| 8/2 | 8,0 | 7,4 | 9,0 | 27,0 | 64,0 | 8,0 | 6 | 2,00 | 45 | 20 |
|
|
| 8/3 | 8,0 | 7,4 | 9,0 | 27,0 | 64,0 | 8,0 | 6 | 3,00 | 45 | 20 |
|
|
| 10/0,5 | 10,0 | 9,2 | 11,0 | 32,0 | 73,0 | 10,0 | 6 | 0,50 | 45 | 20 |
|
|
| 10/0,8 | 10,0 | 9,2 | 11,0 | 32,0 | 73,0 | 10,0 | 6 | 0,80 | 45 | 20 |
|
|
| 10/1 | 10,0 | 9,2 | 11,0 | 32,0 | 73,0 | 10,0 | 6 | 1,00 | 45 | 20 |
|
|
| 10/1,5 | 10,0 | 9,2 | 11,0 | 32,0 | 73,0 | 10,0 | 6 | 1,50 | 45 | 20 |
|
|
| 10/2 | 10,0 | 9,2 | 11,0 | 32,0 | 73,0 | 10,0 | 6 | 2,00 | 45 | 20 |
|
|
| 10/3 | 10,0 | 9,2 | 11,0 | 32,0 | 73,0 | 10,0 | 6 | 3,00 | 45 | 20 |
|
|
| 12/0,5 | 12,0 | 11,0 | 12,0 | 38,0 | 84,0 | 12,0 | 6 | 0,50 | 45 | 20 |
|
|
| 12/1 | 12,0 | 11,0 | 12,0 | 38,0 | 84,0 | 12,0 | 6 | 1,00 | 45 | 20 |
|
|
| 12/1,5 | 12,0 | 11,0 | 12,0 | 38,0 | 84,0 | 12,0 | 6 | 1,50 | 45 | 20 |
|
|
| 12/2 | 12,0 | 11,0 | 12,0 | 38,0 | 84,0 | 12,0 | 6 | 2,00 | 45 | 20 |
|
|
| 12/3 | 12,0 | 11,0 | 12,0 | 38,0 | 84,0 | 12,0 | 6 | 3,00 | 45 | 20 |
|
|
| 16/1 | 16,0 | 15,0 | 16,0 | 44,0 | 93,0 | 16,0 | 6 | 1,00 | 45 | 20 |
|
|
| 16/2 | 16,0 | 15,0 | 16,0 | 44,0 | 93,0 | 16,0 | 6 | 2,00 | 45 | 20 |
|
|
| 16/3 | 16,0 | 15,0 | 16,0 | 44,0 | 93,0 | 16,0 | 6 | 3,00 | 45 | 20 |
|
|
| 20/1 | 20,0 | 18,5 | 20,0 | 50,0 | 104,0 | 20,0 | 6 | 1,00 | 45 | 20 |
|
|
| 20/2,5 | 20,0 | 18,5 | 20,0 | 50,0 | 104,0 | 20,0 | 6 | 2,50 | 45 | 20 |
|
