K202293 | Formmaker Z6-10 short ADN
| Kühlung |
|
|---|---|
| Toleranz | e8 |
| Beschichtung | AlphaDura Navy |
| Downloads | Katalogseite |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Zum Fräsen von gehärteten Stählen entwickeltes Ultrafeinstkornsubstrat
- Angepasster Spanwinkel für sicheres Fräsen bis 70 HRC
- Definierte Schneidkantenpräparation für homogenen Verschleiß
- Radiustoleranz r ≤ 1,5 mm: ± 0,003 mm
- Radiustoleranz r > 1,5 mm: ± 0,005 mm
- Mit zunehmender Härte seitliche Zustellung reduzieren
- Abzeilen von 3D-Konturen
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

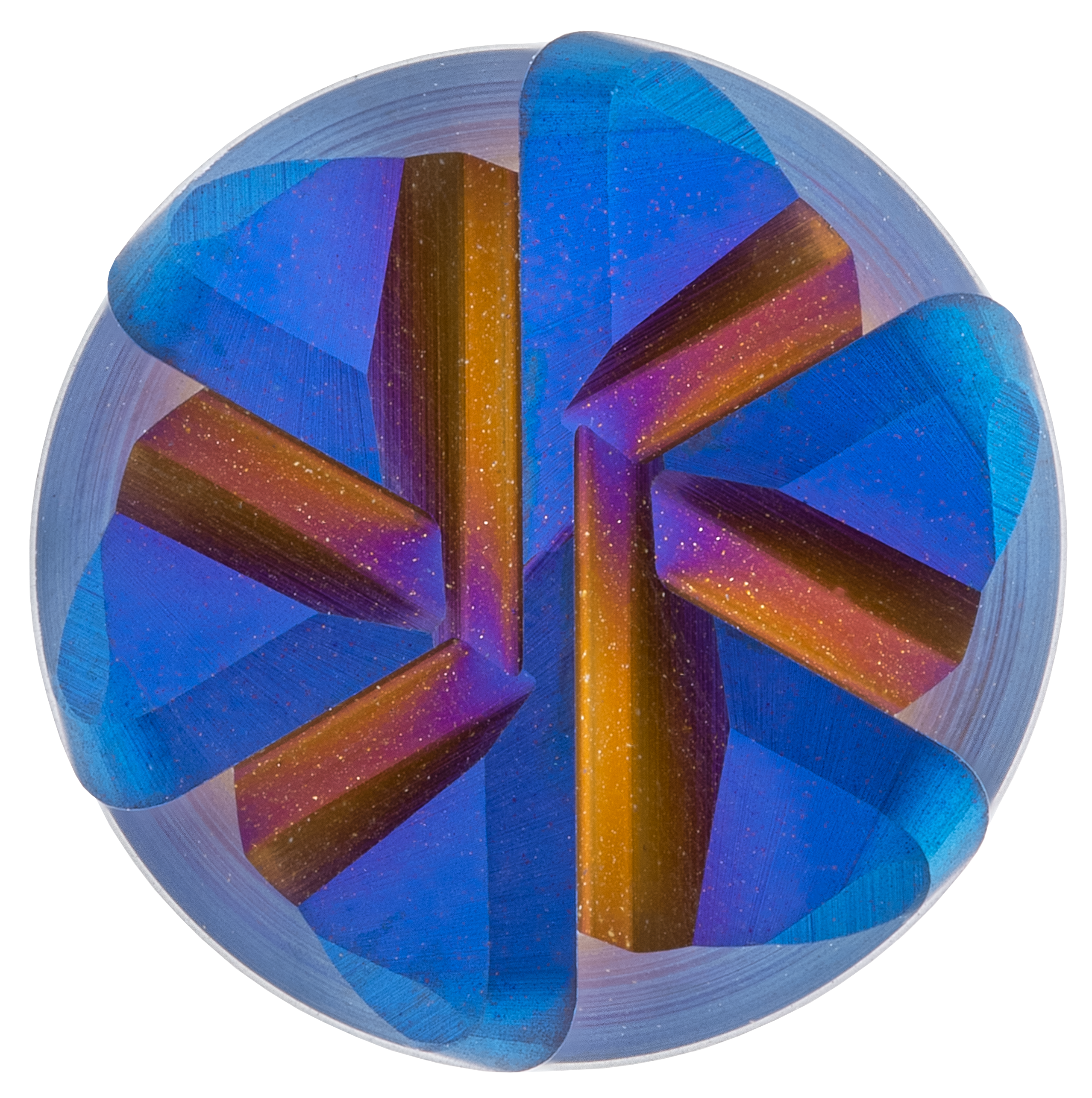

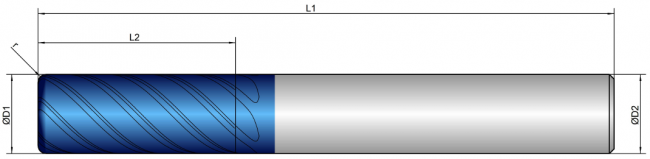

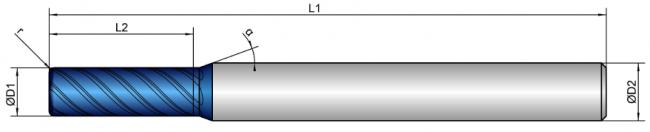

K202293
|
D1
|
L2
|
L1
|
D2
|
z
|
r
|
|
||
|---|---|---|---|---|---|---|---|---|---|
| 5/0,5 | 5,0 | 15,0 | 58,0 | 6,0 | 6 | 0,50 | 45 |
|
|
| 5/1 | 5,0 | 15,0 | 58,0 | 6,0 | 6 | 1,00 | 45 |
|
|
| 6/0,5 | 6,0 | 16,0 | 58,0 | 6,0 | 6 | 0,50 | 45 |
|
|
| 6/1 | 6,0 | 16,0 | 58,0 | 6,0 | 6 | 1,00 | 45 |
|
|
| 8/0,5 | 8,0 | 22,0 | 70,0 | 8,0 | 6 | 0,50 | 45 |
|
|
| 8/1 | 8,0 | 22,0 | 70,0 | 8,0 | 6 | 1,00 | 45 |
|
|
| 10/0,5 | 10,0 | 25,0 | 73,0 | 10,0 | 6 | 0,50 | 45 |
|
|
| 10/1 | 10,0 | 25,0 | 73,0 | 10,0 | 6 | 1,00 | 45 |
|
|
| 10/1,5 | 10,0 | 25,0 | 73,0 | 10,0 | 6 | 1,50 | 45 |
|
|
| 12/0,5 | 12,0 | 28,0 | 84,0 | 12,0 | 6 | 0,50 | 45 |
|
|
| 12/1 | 12,0 | 28,0 | 84,0 | 12,0 | 6 | 1,00 | 45 |
|
|
| 12/1,5 | 12,0 | 28,0 | 84,0 | 12,0 | 6 | 1,50 | 45 |
|
|
| 14/1 | 14,0 | 30,0 | 84,0 | 14,0 | 6 | 1,00 | 45 |
|
|
| 16/1 | 16,0 | 36,0 | 93,0 | 16,0 | 8 | 1,00 | 45 |
|
|
| 16/2 | 16,0 | 36,0 | 93,0 | 16,0 | 8 | 2,00 | 45 |
|
|
| 18/1 | 18,0 | 36,0 | 93,0 | 18,0 | 10 | 1,00 | 45 |
|
|
| 20/1 | 20,0 | 41,0 | 104,0 | 20,0 | 10 | 1,00 | 45 |
|
|
| 20/2 | 20,0 | 41,0 | 104,0 | 20,0 | 10 | 2,00 | 45 |
|
