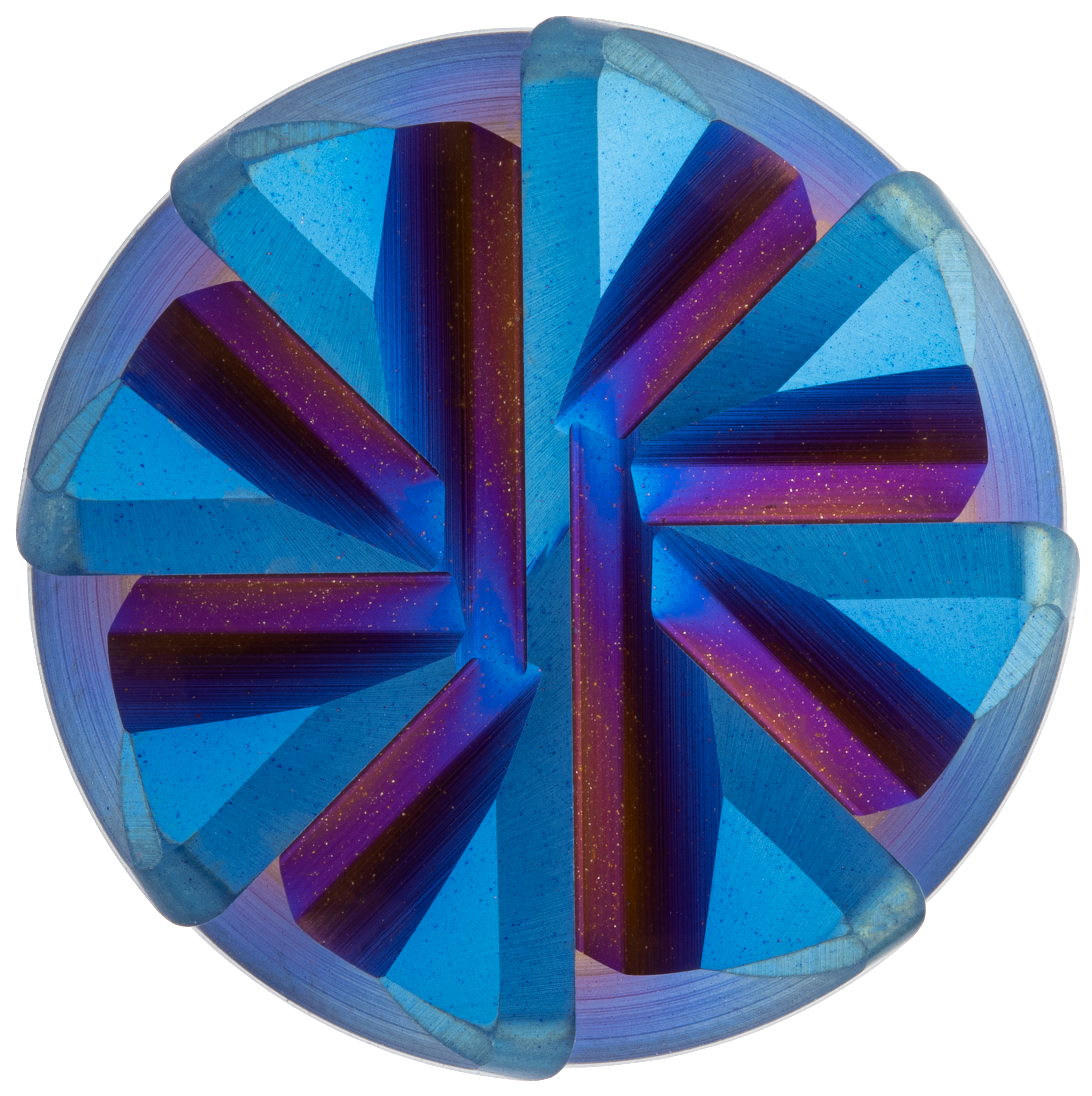

K202307 | SC torus cutter overlong TiSiN ETC / HPC

Expert
No Weldon Extended Trochoidal Cutting High Performance Cutting Multipass milling Trimming Dynamic helical pitch
Cooling air-colled dry
Tolerance e8
Coating TiSiN -
K202307
K202307
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
    160
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC
160 130 85 60
Stainless steel (VA)

Castings

Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

K202307

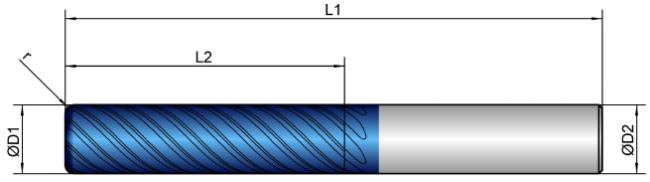

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
16/1 16.0 65.0 125.0 16.0 8 1.00 45 green
16/2 16.0 65.0 125.0 16.0 8 2.00 45 green
20/1 20.0 70.0 135.0 20.0 10 1.00 45 green
20/2 20.0 70.0 135.0 20.0 10 2.00 45 green
