| Cooling |
|
|---|---|
| Tolerance | f7 |
| Coating | TiAlN -  |
| Steel | ||
| < 850 N/mm | < 1100 N/mm | < 1400 N/mm |
| 400 | 290 | 210 |
| Hardened steel | |||
| < 55 HRC | < 60 HRC | < 67 HRC | < 70 HRC |
| Stainless steel (VA) |
| 210 |
| Castings |
| 580 |
| Non-ferrous materials | |||
| Al | Copper | Mg | Plastics |
| 360 | 330 | ||
| Inconel |
| Abrasive material | |
| CFRP / GFRP | Graphite |
| Titanium |
|

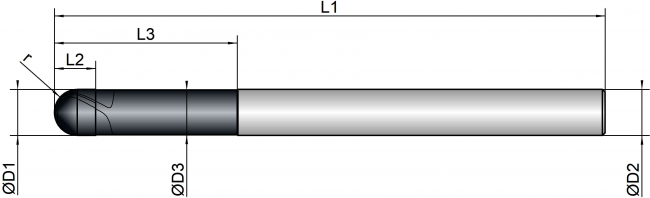

K203003
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/6 | 1.0 | 0.9 | 2.0 | 6.0 | 100.0 | 6.0 | 2 | 0.50 | 30 |
|
|
| 2/6 | 2.0 | 1.8 | 3.0 | 8.0 | 100.0 | 6.0 | 2 | 1.00 | 30 |
|
|
| 3/6 | 3.0 | 2.8 | 4.0 | 12.0 | 100.0 | 6.0 | 2 | 1.50 | 30 |
|
|
| 4/6 | 4.0 | 3.8 | 5.0 | 16.0 | 100.0 | 6.0 | 2 | 2.00 | 30 |
|
|
| 5/6 | 5.0 | 4.8 | 6.0 | 20.0 | 100.0 | 6.0 | 2 | 2.50 | 30 |
|
|
| 6/6 | 6.0 | 5.8 | 6.0 | 25.0 | 100.0 | 6.0 | 2 | 3.00 | 30 |
|
|
| 6/8 | 6.0 | 5.8 | 6.0 | 25.0 | 100.0 | 8.0 | 2 | 3.00 | 30 |
|
|
| 8/8 | 8.0 | 7.8 | 7.0 | 32.0 | 100.0 | 8.0 | 2 | 4.00 | 30 |
|
|
| 8/10 | 8.0 | 7.8 | 7.0 | 32.0 | 120.0 | 10.0 | 2 | 4.00 | 30 |
|
|
| 10/10 | 10.0 | 9.8 | 9.0 | 40.0 | 120.0 | 10.0 | 2 | 5.00 | 30 |
|
|
| 10/12 | 10.0 | 9.8 | 9.0 | 40.0 | 160.0 | 12.0 | 2 | 5.00 | - |
|
|
| 12/12 | 12.0 | 11.8 | 11.0 | 50.0 | 160.0 | 12.0 | 2 | 6.00 | 30 |
|
|
| 12/16 | 12.0 | 11.8 | 11.0 | 50.0 | 200.0 | 16.0 | 2 | 6.00 | 30 |
|
|
| 16/16 | 16.0 | 15.5 | 14.0 | 60.0 | 200.0 | 16.0 | 2 | 8.00 | 30 |
|
