K203033 | SC full radius cutter short TiAlN HSC / HPC

Premium
No Weldon High Speed Cutting High Performance Cutting Universal machining Multipass milling
Cooling air-colled dry water min water max
Tolerance f8
Coating TiAlN -
K203033
K203033
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
420 290 220
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC
165 150
Stainless steel (VA)
225
Castings
615
Non-ferrous materials
Al Copper Mg Plastics
  850
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

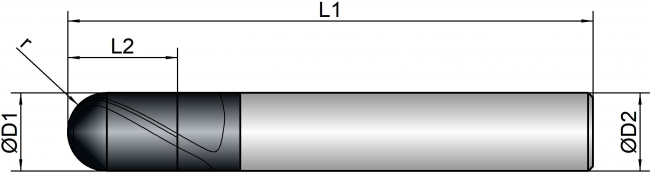

K203033
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
0,1/3 0.1 0.2 38.0 3.0 2 0.05 30 green
0,15/3 0.15 0.3 38.0 3.0 2 0.075 30 green
0,2/3 0.2 0.4 38.0 3.0 2 0.10 30 green
0,25/3 0.25 0.5 38.0 3.0 2 0.125 30 green
0,3/3 0.3 1.0 38.0 3.0 2 0.15 30 green
0,35/3 0.35 1.0 38.0 3.0 2 0.175 30 green
0,4/3 0.4 1.0 38.0 3.0 2 0.20 30 green
0,5/3 0.5 1.5 38.0 3.0 2 0.25 30 green
0,5/6 0.5 1.5 54.0 6.0 2 0.25 30 green
0,6/3 0.6 1.5 38.0 3.0 2 0.30 30 green
0,7/3 0.7 2.0 38.0 3.0 2 0.35 30 green
0,8/3 0.8 2.0 38.0 3.0 2 0.40 30 green
0,9/3 0.9 2.5 38.0 3.0 2 0.45 30 green
1/3 1.0 2.0 50.0 3.0 2 0.50 30 green
1/6 1.0 2.0 54.0 6.0 2 0.50 30 green
1,1/3 1.1 3.0 50.0 3.0 2 0.55 30 green
1,2/3 1.2 3.0 50.0 3.0 2 0.60 30 green
1,4/3 1.4 3.0 50.0 3.0 2 0.70 30 green
1,5/3 1.5 3.0 50.0 3.0 2 0.75 30 green
1,5/6 1.5 3.0 54.0 6.0 2 0.75 30 green
1,6/3 1.6 4.0 50.0 3.0 2 0.80 30 green
1,8/3 1.8 4.0 50.0 3.0 2 0.90 30 green
2/3 2.0 4.0 50.0 3.0 2 1.00 30 green
2/6 2.0 4.0 54.0 6.0 2 1.00 30 green
2,5/3 2.5 5.0 50.0 3.0 2 1.25 30 green
2,5/6 2.5 5.0 54.0 6.0 2 1.25 30 green
3/3 3.0 6.0 50.0 3.0 2 1.50 30 green
3/6 3.0 6.0 54.0 6.0 2 1.50 30 green
4/4 4.0 7.0 54.0 4.0 2 2.00 30 green
4/6 4.0 7.0 54.0 6.0 2 2.00 30 green
5/5 5.0 8.0 54.0 5.0 2 2.50 30 green
5/6 5.0 8.0 54.0 6.0 2 2.50 30 green
6/6 6.0 10.0 54.0 6.0 2 3.00 30 green
7/8 7.0 12.0 59.0 8.0 2 3.50 30 green
8/8 8.0 12.0 59.0 8.0 2 4.00 30 green
10/10 10.0 14.0 67.0 10.0 2 5.00 30 green
12/12 12.0 16.0 73.0 12.0 2 6.00 30 green
14/14 14.0 16.0 75.0 14.0 2 7.00 30 green
16/16 16.0 20.0 83.0 16.0 2 8.00 30 green
18/18 18.0 22.0 93.0 18.0 2 9.00 30 green
20/20 20.0 25.0 93.0 20.0 2 10.00 30 green
