K203093 | SC full radius cutter overlong TiAlN HSC

Premium
No Weldon High Speed Cutting Universal machining Multipass milling
Cooling air-colled dry water min water max
Tolerance f8
Coating TiAlN -
K203093
K203093
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
110 70 65
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
75
Castings
120
Non-ferrous materials
Al Copper Mg Plastics
340 310   380
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

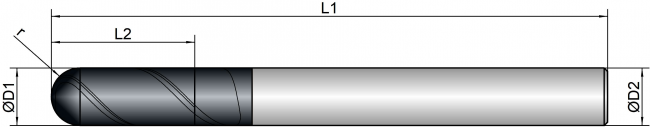

K203093
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
3 3.0 10.0 75.0 3.0 2 1.50 45 configurator
4 4.0 13.0 75.0 4.0 2 2.00 45 configurator
5 5.0 15.0 75.0 5.0 2 2.50 45 configurator
6 6.0 16.0 100.0 6.0 2 3.00 45 configurator
8 8.0 22.0 100.0 8.0 2 4.00 45 configurator
10 10.0 25.0 100.0 10.0 2 5.00 45 configurator
12 12.0 26.0 100.0 12.0 2 6.00 45 configurator
14 14.0 26.0 100.0 14.0 2 7.00 45 configurator
16 16.0 30.0 150.0 16.0 2 8.00 45 configurator
20 20.0 40.0 150.0 20.0 2 10.00 45 configurator
