K203143 | SC full radius cutter overlong TiSiN HSC / HPC

Expert
No Weldon High Speed Cutting High Performance Cutting Multipass milling
Cooling air-cooled dry
Tolerance f8
Coating TiSiN -
K203143
K203143
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
    200
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC
175 155 95 80
Stainless steel (VA)

Castings

Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

K203143

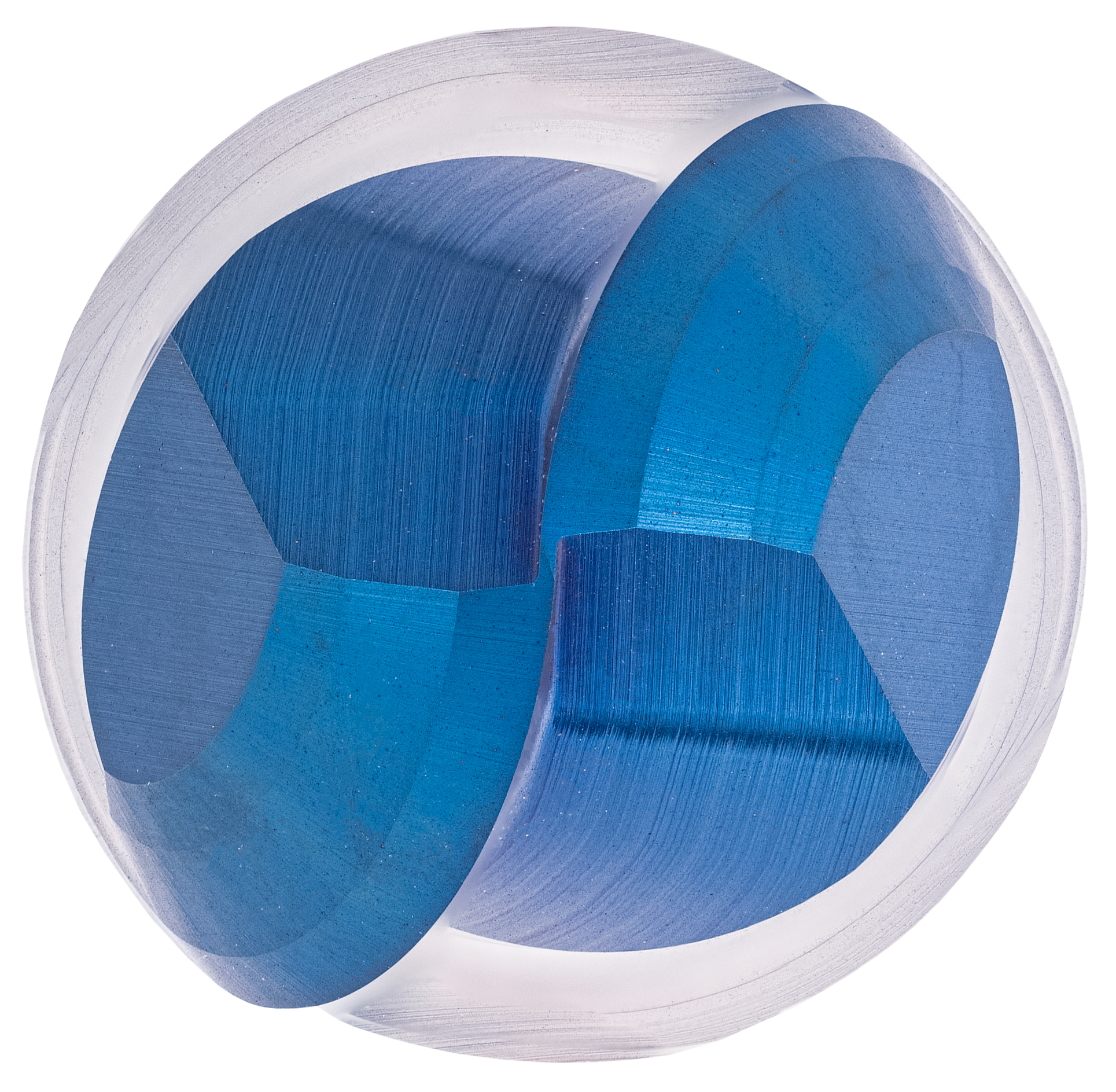

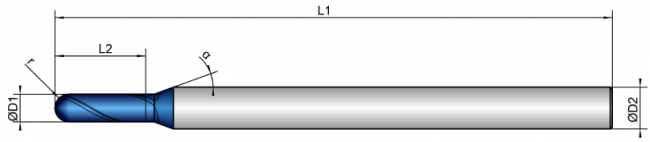

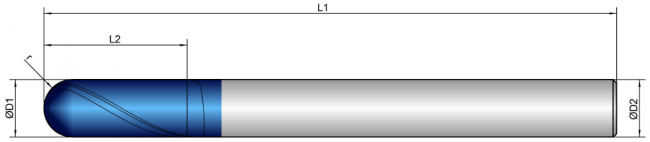

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
0,5/3 0.5 1.5 75.0 3.0 2 0.25 30 green
0,5/6 0.5 1.5 80.0 6.0 2 0.25 30 green
1/3 1.0 3.0 75.0 3.0 2 0.50 30 green
1/6 1.0 3.0 80.0 6.0 2 0.50 30 green
1,5/3 1.5 4.0 75.0 3.0 2 0.75 30 green
1,5/6 1.5 4.0 80.0 6.0 2 0.75 30 green
2/3 2.0 6.0 75.0 3.0 2 1.00 30 green
2/6 2.0 6.0 80.0 6.0 2 1.00 30 green
2,5/3 2.5 8.0 75.0 3.0 2 1.25 30 green
2,5/6 2.5 8.0 80.0 6.0 2 1.25 30 green
3/3 3.0 10.0 75.0 3.0 2 1.50 30 green
3/6 3.0 10.0 80.0 6.0 2 1.50 30 green
4/4 4.0 13.0 75.0 4.0 2 2.00 30 green
4/6 4.0 13.0 80.0 6.0 2 2.00 30 green
5/5 5.0 14.0 75.0 5.0 2 2.50 30 green
5/6 5.0 14.0 100.0 6.0 2 2.50 30 green
6/6 6.0 16.0 100.0 6.0 2 3.00 30 green
8/8 8.0 22.0 100.0 8.0 2 4.00 30 green
10/10 10.0 25.0 100.0 10.0 2 5.00 30 green
12/12 12.0 26.0 100.0 12.0 2 6.00 30 green
14/14 14.0 26.0 100.0 14.0 2 7.00 30 green
16/16 16.0 30.0 150.0 16.0 2 8.00 30 green
20/20 20.0 40.0 150.0 20.0 2 10.00 30 green
