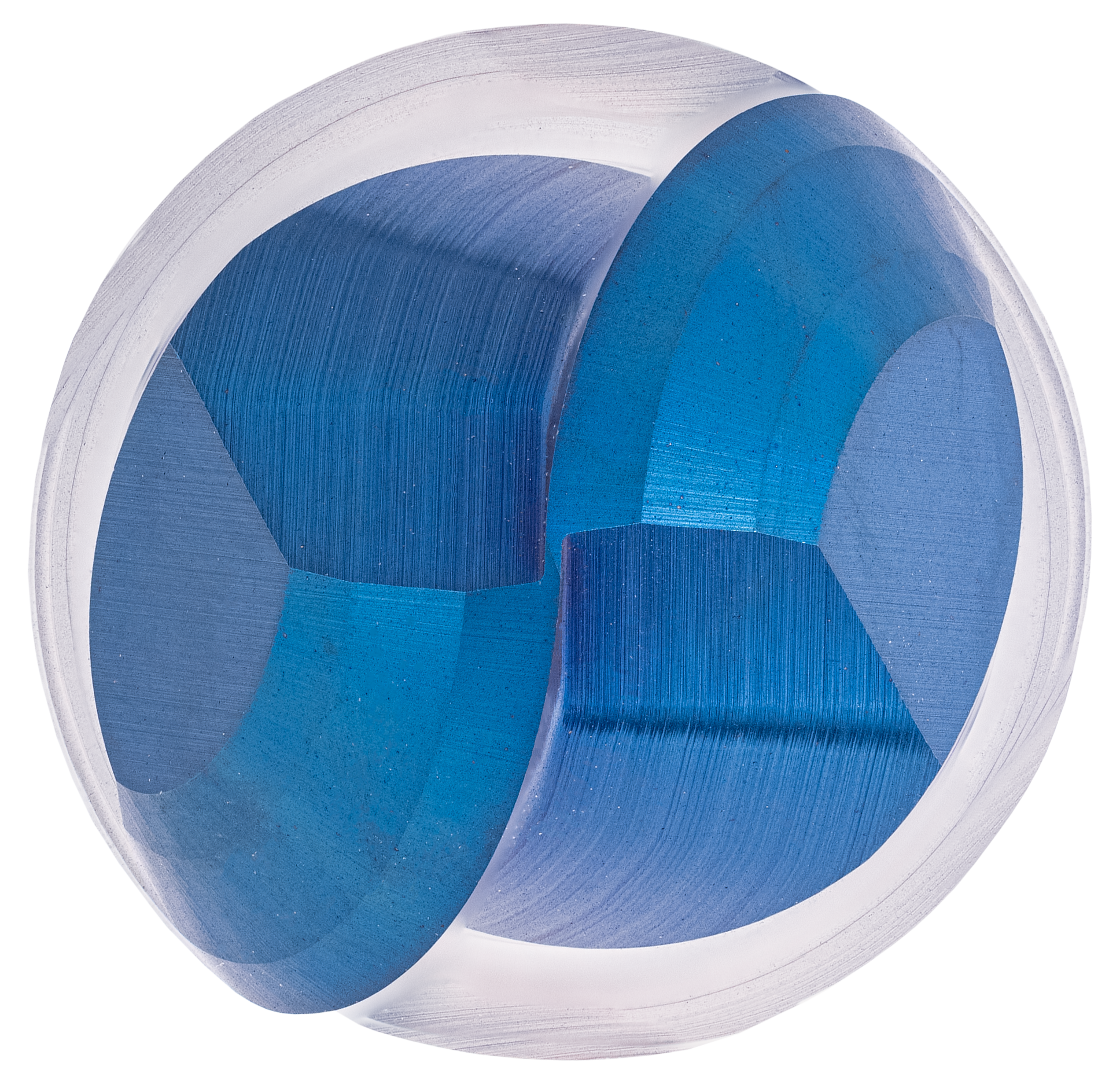

K203212 | SC micro full radius cutter long TiSiN HSC

Expert
No Weldon High Speed Cutting Multipass milling
Cooling air-colled dry water min water max
Tolerance 0-0,01
Coating TiSiN -
K203212
K203212
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
220 210 195
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC
125 75 60 45
Stainless steel (VA)
100
Castings

Non-ferrous materials
Al Copper Mg Plastics
  150
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

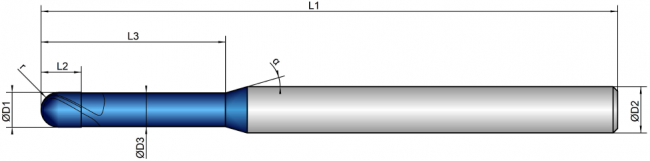

K203212
D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
0,3X1,75 0.3 0.27 0.24 1.75 50.0 4.0 2 0.15 30 green
0,3X2 0.3 0.27 0.24 2.0 50.0 4.0 2 0.15 30 green
0,3X2,25 0.3 0.27 0.24 2.25 50.0 4.0 2 0.15 30 green
0,3X2,5 0.3 0.27 0.24 2.5 50.0 4.0 2 0.15 30 green
0,3X2,75 0.3 0.27 0.24 2.75 50.0 4.0 2 0.15 30 green
0,3X3 0.3 0.27 0.24 3.0 50.0 4.0 2 0.15 30 green
0,3X3,5 0.3 0.27 0.24 3.5 50.0 4.0 2 0.15 30 green
0,3X4 0.3 0.27 0.24 4.0 50.0 4.0 2 0.15 30 green
0,3X4,5 0.3 0.27 0.24 4.5 50.0 4.0 2 0.15 30 green
0,5X10 0.5 0.47 0.4 10.0 50.0 4.0 2 0.25 30 green
0,6X10 0.6 0.57 0.48 10.0 50.0 4.0 2 0.30 30 green
0,6X12 0.6 0.57 0.48 12.0 50.0 4.0 2 0.30 30 green
0,8X10 0.8 0.77 0.64 10.0 50.0 4.0 2 0.40 30 green
1X14 1.0 0.96 0.8 14.0 50.0 4.0 2 0.50 30 green
1X16 1.0 0.96 0.8 16.0 50.0 4.0 2 0.50 30 green
1,2X14 1.2 1.16 0.96 14.0 50.0 4.0 2 0.60 30 green
1,2X16 1.2 1.16 0.96 16.0 50.0 4.0 2 0.60 30 green
1,4X16 1.4 1.34 1.12 16.0 50.0 4.0 2 0.70 30 green
1,5X14 1.5 1.44 1.2 14.0 50.0 4.0 2 0.75 30 green
1,5X16 1.5 1.44 1.2 16.0 50.0 4.0 2 0.75 30 green
1,6X16 1.6 1.54 1.28 16.0 50.0 4.0 2 0.80 30 green
1,8X16 1.8 1.74 1.44 16.0 50.0 4.0 2 0.90 30 green
2X14 2.0 1.94 1.6 14.0 50.0 4.0 2 1.00 30 green
2X16 2.0 1.94 1.6 16.0 50.0 4.0 2 1.00 30 green
2,5X15 2.5 2.41 2.0 15.0 50.0 4.0 2 1.25 30 green
3X16 3.0 2.92 3.5 16.0 50.0 4.0 2 1.50 30 green
