K203253 | SC full radius cutter short TiAlN HSC / MTC / HPC

Premium
No Weldon High Speed Cutting High Performance Cutting Multi-Task Cutting Universal machining Multipass milling Full slot
Cooling air-colled dry water min water max
Tolerance f8
Coating TiAlN -
K203253
K203253
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
210 150 140
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
90
Castings
360
Non-ferrous materials
Al Copper Mg Plastics
400
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium
50

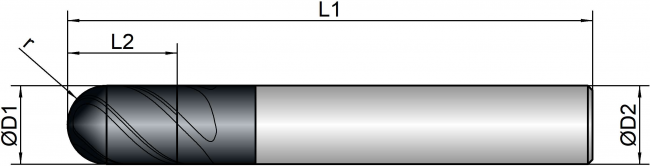

K203253
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
3 3.0 5.0 50.0 3.0 4 1.50 45 green
4 4.0 8.0 54.0 4.0 4 2.00 45 green
5 5.0 9.0 54.0 5.0 4 2.50 45 green
6 6.0 10.0 54.0 6.0 4 3.00 45 green
8 8.0 12.0 59.0 8.0 4 4.00 45 green
10 10.0 14.0 67.0 10.0 4 5.00 45 green
12 12.0 16.0 74.0 12.0 4 6.00 45 green
14 14.0 18.0 75.0 14.0 4 7.00 45 green
16 16.0 22.0 83.0 16.0 4 8.00 45 green
20 20.0 26.0 93.0 20.0 4 10.00 45 green
