K203263 | SC full radius cutter long TiAlN HSC / MTC / HPC

Premium
No Weldon High Speed Cutting High Performance Cutting Multi-Task Cutting Universal machining Multipass milling Full slot
Cooling air-colled dry water min water max
Tolerance f8
Coating TiAlN -
K203263
K203263
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
190 130 120
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
80
Castings
340
Non-ferrous materials
Al Copper Mg Plastics
380
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium
40

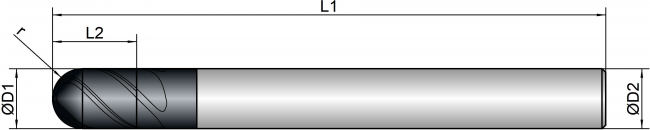

K203263
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
3 3.0 5.0 75.0 3.0 4 1.50 45 configurator
4 4.0 8.0 75.0 4.0 4 2.00 45 configurator
5 5.0 9.0 75.0 5.0 4 2.50 45 configurator
6 6.0 10.0 100.0 6.0 4 3.00 45 configurator
8 8.0 12.0 100.0 8.0 4 4.00 45 configurator
10 10.0 14.0 100.0 10.0 4 5.00 45 configurator
12 12.0 16.0 100.0 12.0 4 6.00 45 configurator
14 14.0 18.0 100.0 14.0 4 7.00 45 configurator
16 16.0 22.0 150.0 16.0 4 8.00 45 configurator
20 20.0 26.0 150.0 20.0 4 10.00 45 configurator
