K203343 | Rowmaker Z4 1xD long ADN
| Kühlung |
|
|---|---|
| Toleranz | f8 |
| Beschichtung | AlphaDura Navy |
| Downloads | Katalogseite |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Zum Fräsen von gehärteten Stählen entwickeltes Ultrafeinstkornsubstrat
- Angepasster Spanwinkel für sicheres Fräsen bis 70 HRC
- Definierte Schneidkantenpräparation für homogenen Verschleiß

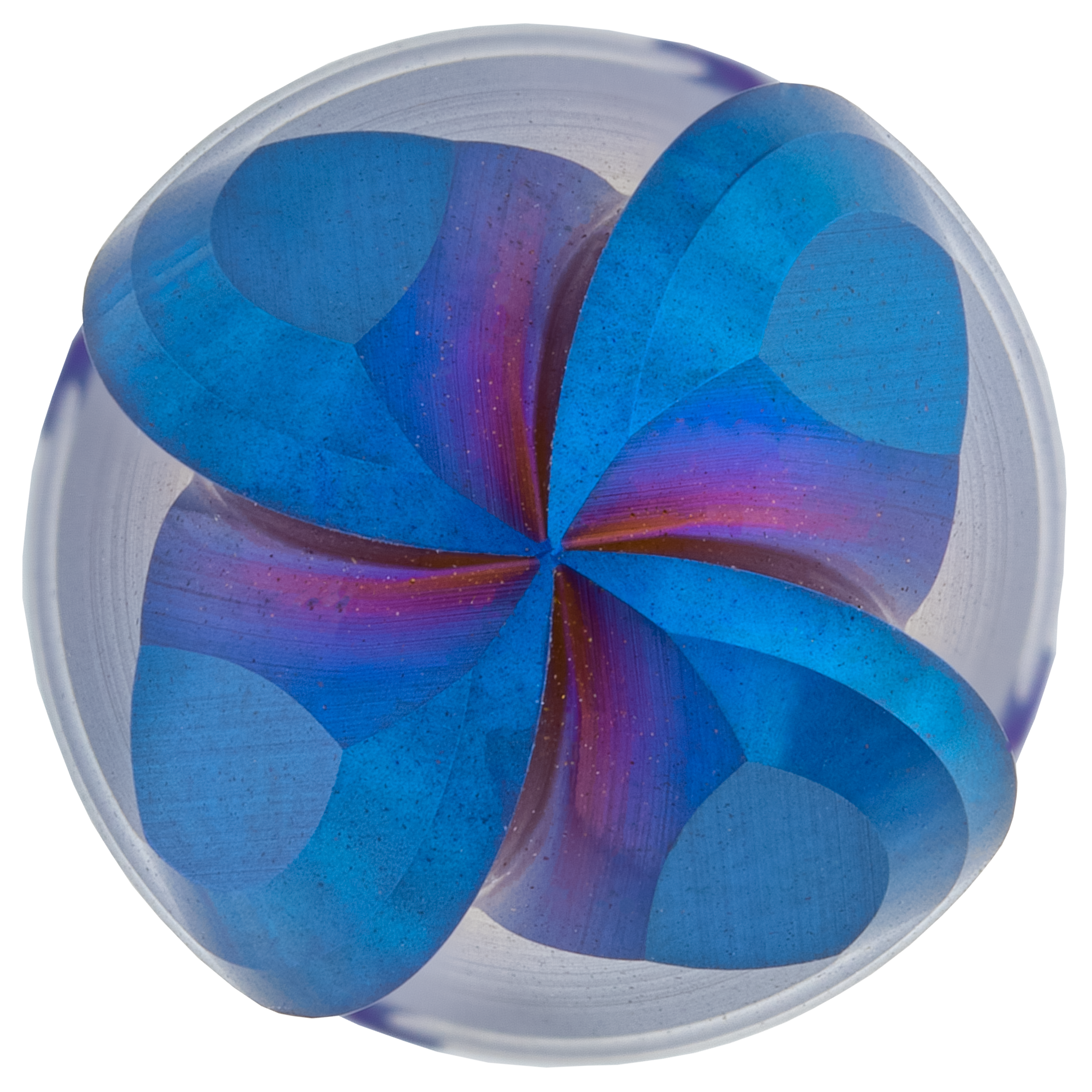

- 4 Schneiden bis zum Zentrum
- Radiustoleranz r ≤ 2 mm: ± 0,003 mm
- Radiustoleranz r > 2 mm: ± 0,005 mm
- Lange Ausführung für tiefere Kavitäten
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

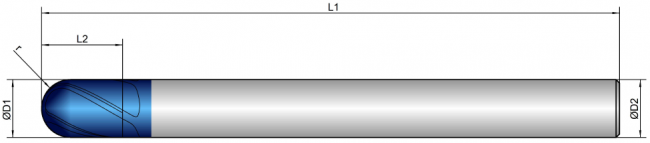

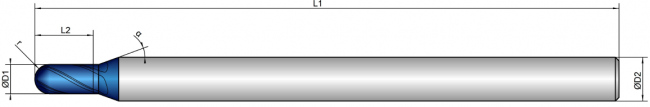

K203343
|
D1
|
L2
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|
| 2/3 | 2,0 | 4,0 | 75,0 | 3,0 | 4 | 1,00 | 30 | 8 |
|
|
| 2/6 | 2,0 | 4,0 | 80,0 | 6,0 | 4 | 1,00 | 30 | 12 |
|
|
| 2,5/6 | 2,5 | 5,0 | 80,0 | 6,0 | 4 | 1,25 | 30 | 12 |
|
|
| 3/3 | 3,0 | 5,0 | 75,0 | 3,0 | 4 | 1,50 | 30 | - |
|
|
| 3/6 | 3,0 | 5,0 | 80,0 | 6,0 | 4 | 1,50 | 30 | 12 |
|
|
| 4/4 | 4,0 | 8,0 | 75,0 | 4,0 | 4 | 2,00 | 30 | - |
|
|
| 4/6 | 4,0 | 8,0 | 80,0 | 6,0 | 4 | 2,00 | 30 | 12 |
|
|
| 5/5 | 5,0 | 9,0 | 75,0 | 5,0 | 4 | 2,50 | 30 | - |
|
|
| 5/6 | 5,0 | 9,0 | 100,0 | 6,0 | 4 | 2,50 | 30 | 12 |
|
|
| 6/6 | 6,0 | 10,0 | 100,0 | 6,0 | 4 | 3,00 | 30 | - |
|
|
| 8/8 | 8,0 | 12,0 | 100,0 | 8,0 | 4 | 4,00 | 30 | - |
|
|
| 10/10 | 10,0 | 14,0 | 100,0 | 10,0 | 4 | 5,00 | 30 | - |
|
|
| 12/12 | 12,0 | 16,0 | 100,0 | 12,0 | 4 | 6,00 | 30 | - |
|
|
| 14/14 | 14,0 | 18,0 | 100,0 | 14,0 | 4 | 7,00 | 30 | - |
|
|
| 16/16 | 16,0 | 22,0 | 150,0 | 16,0 | 4 | 8,00 | 30 | - |
|
|
| 20/20 | 20,0 | 26,0 | 150,0 | 20,0 | 4 | 10,00 | 30 | - |
|
