K203413 | SC full radius cutter short TiSiN HSC / HPC

Expert
No Weldon High Speed Cutting High Performance Cutting Multipass milling
Cooling air-colled dry water min water max
Tolerance f8
Coating TiSiN -
K203413
K203413
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
200 160 150
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
100
Castings
350
Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

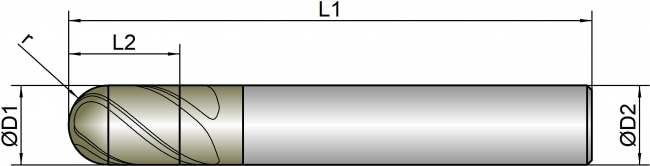

K203413
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
3 3.0 5.0 54.0 6.0 4 1.50 40 green
4 4.0 8.0 54.0 6.0 4 2.00 40 green
5 5.0 9.0 54.0 6.0 4 2.50 40 green
6 6.0 10.0 54.0 6.0 4 3.00 40 green
8 8.0 12.0 58.0 8.0 4 4.00 40 green
10 10.0 14.0 66.0 10.0 4 5.00 40 green
12 12.0 16.0 73.0 12.0 4 6.00 40 green
16 16.0 22.0 82.0 16.0 4 8.00 40 green
