K204033 | SC conical finishing cutter 1.5° TiAlN

Premium
No Weldon Universal machining
Cooling air-colled dry water min water max
Tolerance
Coating TiAlN -
K204033
K204033
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
Castings
Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

K204033

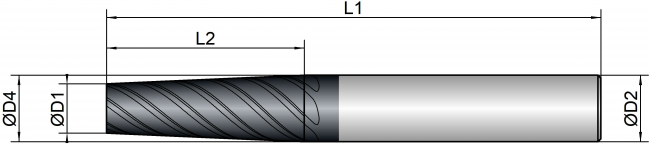

D1
schneiden_durchmesser
D4
schneiden_durchmesser_konisch_hinten
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
2X10 2.0 3.0 10.0 50.0 3.0 4 30 green
2,5X10 2.5 4.0 10.0 50.0 4.0 4 30 green
2,5X20 2.5 4.0 20.0 60.0 4.0 4 30 green
3X20 3.0 4.0 20.0 60.0 4.0 4 30 green
3,5X20 3.5 5.0 20.0 60.0 5.0 4 30 green
4X20 4.0 5.0 20.0 60.0 5.0 4 30 orange
4,5X20 4.5 6.0 20.0 65.0 6.0 4 30 green
5X30 5.0 8.0 30.0 75.0 8.0 6 45 green
6X30 6.0 8.0 30.0 75.0 8.0 6 45 green
8X30 8.0 10.0 30.0 80.0 10.0 6 45 green
10X30 10.0 12.0 30.0 85.0 12.0 6 45 green
12X30 12.0 14.0 30.0 85.0 14.0 6 45 green
12X50 12.0 16.0 50.0 110.0 16.0 6 45 green
16X60 16.0 20.0 60.0 126.0 20.0 6 45 green
