K204063 | SC conical finishing cutter 3° TiAlN

Premium
No Weldon Universal machining
Cooling air-colled dry water min water max
Tolerance
Coating TiAlN -
K204063
K204063
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
Castings
Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

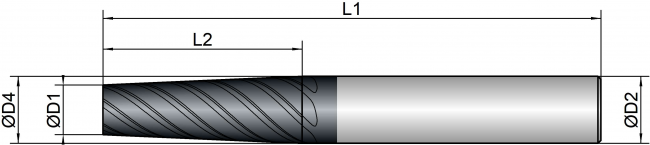

K204063
D1
schneiden_durchmesser
D4
schneiden_durchmesser_konisch_hinten
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
2X10 2.0 4.0 10.0 50.0 4.0 4 30 green
2,5X10 2.5 4.0 10.0 50.0 4.0 4 30 green
2,5X20 2.5 6.0 20.0 65.0 6.0 4 30 green
3X25 3.0 6.0 25.0 70.0 6.0 4 30 green
3X30 3.0 8.0 30.0 75.0 8.0 4 30 orange
3X40 3.0 8.0 40.0 85.0 8.0 4 30 green
4X25 4.0 8.0 25.0 70.0 8.0 6 45 green
4X30 4.0 8.0 30.0 75.0 8.0 6 45 green
5X40 5.0 10.0 40.0 90.0 10.0 6 45 green
6X30 6.0 10.0 30.0 80.0 10.0 6 45 green
8X30 8.0 12.0 30.0 84.0 12.0 6 45 green
8X50 8.0 14.0 50.0 110.0 14.0 6 45 green
10X30 10.0 14.0 30.0 84.0 14.0 6 45 green
10X50 10.0 16.0 50.0 110.0 16.0 6 45 green
12X30 12.0 16.0 30.0 90.0 16.0 6 45 green
12X50 12.0 18.0 50.0 110.0 18.0 6 45 green
