| Cooling |
|
|---|---|
| Tolerance | |
| Coating | TiAlN -  |
| Steel | ||
| < 850 N/mm | < 1100 N/mm | < 1400 N/mm |
|
|
|
| Hardened steel | |||
| < 55 HRC | < 60 HRC | < 67 HRC | < 70 HRC |
| Stainless steel (VA) |
|
|
| Castings |
|
|
| Non-ferrous materials | |||
| Al | Copper | Mg | Plastics |
|
| |||
| Inconel |
| Abrasive material | |
| CFRP / GFRP | Graphite |
| Titanium |
|

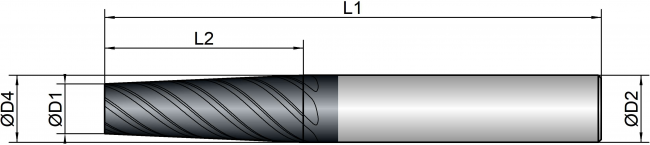

K204073
|
D1
|
D4
|
L2
|
L1
|
D2
|
z
|
|
||
|---|---|---|---|---|---|---|---|---|---|
| 2,5X25 | 2.5 | 6.0 | 25.0 | 65.0 | 6.0 | 4 | 30 |
|
|
| 3X20 | 3.0 | 6.0 | 20.0 | 65.0 | 6.0 | 4 | 30 |
|
|
| 3,5X25 | 3.5 | 8.0 | 25.0 | 70.0 | 8.0 | 4 | 30 |
|
|
| 4X28 | 4.0 | 8.0 | 28.0 | 70.0 | 8.0 | 6 | 45 |
|
|
| 5X30 | 5.0 | 10.0 | 30.0 | 85.0 | 10.0 | 6 | 45 |
|
|
| 5X45 | 5.0 | 12.0 | 45.0 | 100.0 | 12.0 | 6 | 45 |
|
|
| 6X30 | 6.0 | 12.0 | 30.0 | 84.0 | 12.0 | 6 | 45 |
|
|
| 6X50 | 6.0 | 14.0 | 50.0 | 110.0 | 14.0 | 6 | 45 |
|
|
| 8X30 | 8.0 | 14.0 | 30.0 | 84.0 | 14.0 | 6 | 45 |
|
|
| 8X50 | 8.0 | 16.0 | 50.0 | 110.0 | 16.0 | 6 | 45 |
|
|
| 10X30 | 10.0 | 16.0 | 30.0 | 93.0 | 16.0 | 6 | 45 |
|
|
| 10X50 | 10.0 | 18.0 | 50.0 | 114.0 | 18.0 | 6 | 45 |
|
|
