K205154 | SC deburrer 60° TiSiN

Expert
Weldon HB Deburring
Cooling air-colled dry
Tolerance -
Coating TiSiN -
K205154
K205154
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
    65
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC
50 45 40 35
Stainless steel (VA)

Castings

Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

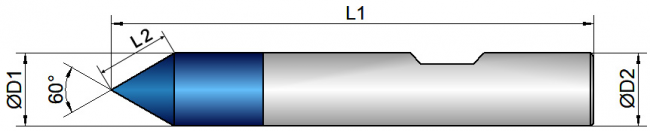

K205154
D1
schneiden_durchmesser
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
6 6.0 50.0 6.0 4 green
8 8.0 59.0 8.0 4 green
10 10.0 66.0 10.0 4 green
12 12.0 73.0 12.0 4 green
