| Cooling |
|
|---|---|
| Tolerance | d11 |
| Coating | TiAlN -  |
| Steel | ||
| < 850 N/mm | < 1100 N/mm | < 1400 N/mm |
| 200 | 170 | 150 |
| Hardened steel | |||
| < 55 HRC | < 60 HRC | < 67 HRC | < 70 HRC |
| Stainless steel (VA) |
| 70 |
| Castings |
| 150 |
| Non-ferrous materials | |||
| Al | Copper | Mg | Plastics |
| Inconel |
| Abrasive material | |
| CFRP / GFRP | Graphite |
| Titanium |
| 40 |
|

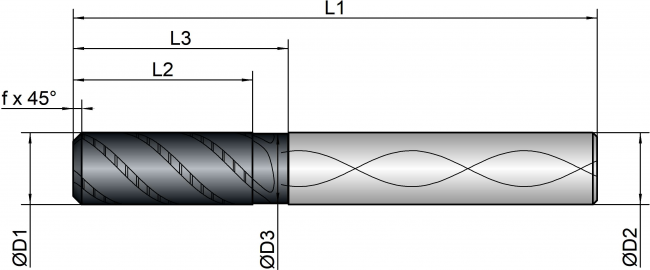

K206113
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
|
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 6.0 | 5.8 | 16.0 | 21.0 | 58.0 | 6.0 | 4 | 0.15 | 45 |
|
|
| 8 | 8.0 | 7.7 | 22.0 | 27.0 | 70.0 | 8.0 | 4 | 0.20 | 45 |
|
|
| 10 | 10.0 | 9.7 | 25.0 | 30.0 | 73.0 | 10.0 | 4 | 0.20 | 45 |
|
|
| 12 | 12.0 | 11.6 | 28.0 | 38.0 | 84.0 | 12.0 | 4 | 0.25 | 45 |
|
|
| 14 | 14.0 | 13.6 | 30.0 | 40.0 | 84.0 | 14.0 | 4 | 0.25 | 45 |
|
|
| 16 | 16.0 | 15.5 | 36.0 | 45.0 | 93.0 | 16.0 | 5 | 0.35 | 45 |
|
|
| 18 | 18.0 | 17.5 | 36.0 | 45.0 | 93.0 | 18.0 | 5 | 0.35 | 45 |
|
|
| 20 | 20.0 | 19.5 | 41.0 | 55.0 | 104.0 | 20.0 | 5 | 0.40 | 45 |
|
