BCU1-D01-0224 | BCU1 COREMAKER Z2 5XD IC BUI
| Kühlung |
|
|---|---|
| Toleranz | h7 |
| Beschichtung | BetaUni Iron |
| Downloads | Katalogseite & Schnittdaten |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Vielseitig einsetzbare Universalgeometrie
- Doppelt geführter Spanraum für ideale Spanabfuhr
- Polierte Oberflächen für minimalen Reibungswiderstand

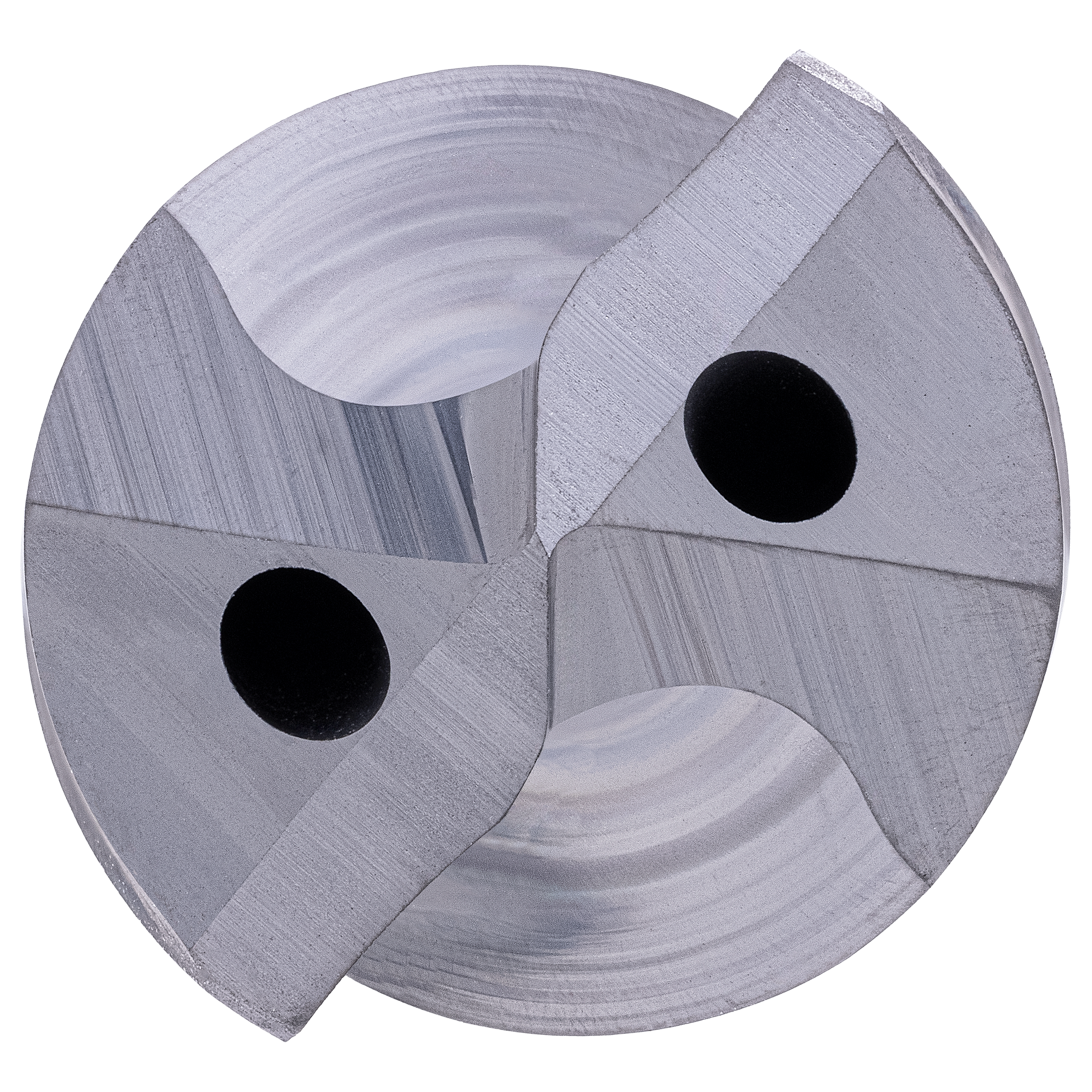

- Speziell geschwungene Stirnschneide für höhere Vorschübe und eine sichere Zentrierung
|

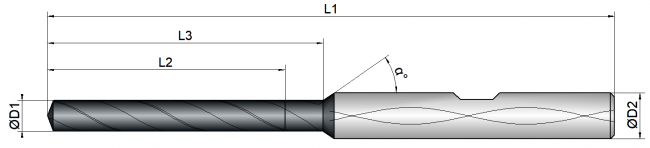

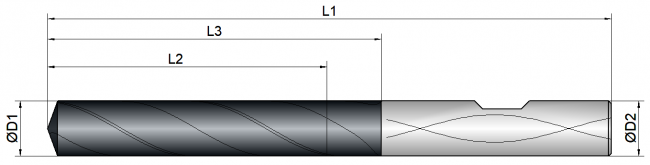

BCU1-D01-0224
|
D1
|
L2
|
D2
|
L1
|
||
|---|---|---|---|---|---|---|
| 1/8 | 3,175 | 24,0 | 6,0 | 66,0 |
|
|
| 3 | 3,0 | 24,0 | 6,0 | 66,0 |
|
|
| 3/8 | 9,525 | 51,0 | 10,0 | 103,0 |
|
|
| 3/16 | 4,762 | 38,0 | 6,0 | 82,0 |
|
|
| 3,1 | 3,1 | 24,0 | 6,0 | 66,0 |
|
|
| 3,2 | 3,2 | 24,0 | 6,0 | 66,0 |
|
|
| 3,25 | 3,25 | 24,0 | 6,0 | 66,0 |
|
|
| 3,3 | 3,3 | 24,0 | 6,0 | 66,0 |
|
|
| 3,4 | 3,4 | 24,0 | 6,0 | 66,0 |
|
|
| 3,5 | 3,5 | 24,0 | 6,0 | 66,0 |
|
|
| 3,6 | 3,6 | 24,0 | 6,0 | 66,0 |
|
|
| 3,7 | 3,7 | 24,0 | 6,0 | 66,0 |
|
|
| 3,75 | 3,75 | 24,0 | 6,0 | 66,0 |
|
|
| 3,8 | 3,8 | 31,0 | 6,0 | 74,0 |
|
|
| 3,9 | 3,9 | 31,0 | 6,0 | 74,0 |
|
|
| 4 | 4,0 | 31,0 | 6,0 | 74,0 |
|
|
| 4,1 | 4,1 | 31,0 | 6,0 | 74,0 |
|
|
| 4,2 | 4,2 | 31,0 | 6,0 | 74,0 |
|
|
| 4,3 | 4,3 | 31,0 | 6,0 | 74,0 |
|
|
| 4,4 | 4,4 | 31,0 | 6,0 | 74,0 |
|
|
| 4,5 | 4,5 | 31,0 | 6,0 | 74,0 |
|
|
| 4,6 | 4,6 | 31,0 | 6,0 | 74,0 |
|
|
| 4,65 | 4,65 | 31,0 | 6,0 | 74,0 |
|
|
| 4,7 | 4,7 | 31,0 | 6,0 | 74,0 |
|
|
| 4,75 | 4,75 | 31,0 | 6,0 | 74,0 |
|
|
| 4,8 | 4,8 | 38,0 | 6,0 | 82,0 |
|
|
| 4,9 | 4,9 | 38,0 | 6,0 | 82,0 |
|
|
| 5 | 5,0 | 38,0 | 6,0 | 82,0 |
|
|
| 5/16 | 7,938 | 45,0 | 8,0 | 91,0 |
|
|
| 5/32 | 3,969 | 31,0 | 6,0 | 74,0 |
|
|
| 5,1 | 5,1 | 38,0 | 6,0 | 82,0 |
|
|
| 5,2 | 5,2 | 38,0 | 6,0 | 82,0 |
|
|
| 5,3 | 5,3 | 38,0 | 6,0 | 82,0 |
|
|
| 5,4 | 5,4 | 38,0 | 6,0 | 82,0 |
|
|
| 5,5 | 5,5 | 38,0 | 6,0 | 82,0 |
|
|
| 5,55 | 5,55 | 38,0 | 6,0 | 82,0 |
|
|
| 5,6 | 5,6 | 38,0 | 6,0 | 82,0 |
|
|
| 5,65 | 5,65 | 38,0 | 6,0 | 82,0 |
|
|
| 5,7 | 5,7 | 38,0 | 6,0 | 82,0 |
|
|
| 5,75 | 5,75 | 38,0 | 6,0 | 82,0 |
|
|
| 5,8 | 5,8 | 38,0 | 6,0 | 82,0 |
|
|
| 5,9 | 5,9 | 38,0 | 6,0 | 82,0 |
|
|
| 6 | 6,0 | 38,0 | 6,0 | 82,0 |
|
|
| 6,1 | 6,1 | 45,0 | 8,0 | 91,0 |
|
|
| 6,2 | 6,2 | 45,0 | 8,0 | 91,0 |
|
|
| 6,3 | 6,3 | 45,0 | 8,0 | 91,0 |
|
|
| 6,35 | 6,35 | 45,0 | 8,0 | 91,0 |
|
|
| 6,4 | 6,4 | 45,0 | 8,0 | 91,0 |
|
|
| 6,5 | 6,5 | 45,0 | 8,0 | 91,0 |
|
|
| 6,55 | 6,55 | 45,0 | 8,0 | 91,0 |
|
|
| 6,6 | 6,6 | 45,0 | 8,0 | 91,0 |
|
|
| 6,65 | 6,65 | 45,0 | 8,0 | 91,0 |
|
|
| 6,7 | 6,7 | 45,0 | 8,0 | 91,0 |
|
|
| 6,8 | 6,8 | 45,0 | 8,0 | 91,0 |
|
|
| 6,9 | 6,9 | 45,0 | 8,0 | 91,0 |
|
|
| 7 | 7,0 | 45,0 | 8,0 | 91,0 |
|
|
| 7/16 | 11,112 | 58,0 | 12,0 | 118,0 |
|
|
| 7/32 | 5,556 | 38,0 | 6,0 | 82,0 |
|
|
| 7,1 | 7,1 | 45,0 | 8,0 | 91,0 |
|
|
| 7,2 | 7,2 | 45,0 | 8,0 | 91,0 |
|
|
| 7,3 | 7,3 | 45,0 | 8,0 | 91,0 |
|
|
| 7,4 | 7,4 | 45,0 | 8,0 | 91,0 |
|
|
| 7,45 | 7,45 | 45,0 | 8,0 | 91,0 |
|
|
| 7,5 | 7,5 | 45,0 | 8,0 | 91,0 |
|
|
| 7,6 | 7,6 | 45,0 | 8,0 | 91,0 |
|
|
| 7,65 | 7,65 | 45,0 | 8,0 | 91,0 |
|
|
| 7,7 | 7,7 | 45,0 | 8,0 | 91,0 |
|
|
| 7,8 | 7,8 | 45,0 | 8,0 | 91,0 |
|
|
| 7,9 | 7,9 | 45,0 | 8,0 | 91,0 |
|
|
| 8 | 8,0 | 45,0 | 8,0 | 91,0 |
|
|
| 8,1 | 8,1 | 51,0 | 10,0 | 103,0 |
|
|
| 8,2 | 8,2 | 51,0 | 10,0 | 103,0 |
|
|
| 8,3 | 8,3 | 51,0 | 10,0 | 103,0 |
|
|
| 8,4 | 8,4 | 51,0 | 10,0 | 103,0 |
|
|
| 8,5 | 8,5 | 51,0 | 10,0 | 103,0 |
|
|
| 8,6 | 8,6 | 51,0 | 10,0 | 103,0 |
|
|
| 8,7 | 8,7 | 51,0 | 10,0 | 103,0 |
|
|
| 8,8 | 8,8 | 51,0 | 10,0 | 103,0 |
|
|
| 8,9 | 8,9 | 51,0 | 10,0 | 103,0 |
|
|
| 9 | 9,0 | 51,0 | 10,0 | 103,0 |
|
|
| 9/32 | 7,144 | 45,0 | 8,0 | 91,0 |
|
|
| 9,1 | 9,1 | 51,0 | 10,0 | 103,0 |
|
|
| 9,2 | 9,2 | 51,0 | 10,0 | 103,0 |
|
|
| 9,3 | 9,3 | 51,0 | 10,0 | 103,0 |
|
|
| 9,35 | 9,35 | 51,0 | 10,0 | 103,0 |
|
|
| 9,4 | 9,4 | 51,0 | 10,0 | 103,0 |
|
|
| 9,5 | 9,5 | 51,0 | 10,0 | 103,0 |
|
|
| 9,6 | 9,6 | 51,0 | 10,0 | 103,0 |
|
|
| 9,65 | 9,65 | 51,0 | 10,0 | 103,0 |
|
|
| 9,7 | 9,7 | 51,0 | 10,0 | 103,0 |
|
|
| 9,8 | 9,8 | 51,0 | 10,0 | 103,0 |
|
|
| 9,9 | 9,9 | 51,0 | 10,0 | 103,0 |
|
|
| 10 | 10,0 | 51,0 | 10,0 | 103,0 |
|
|
| 10,1 | 10,1 | 58,0 | 12,0 | 118,0 |
|
|
| 10,2 | 10,2 | 58,0 | 12,0 | 118,0 |
|
|
| 10,3 | 10,3 | 58,0 | 12,0 | 118,0 |
|
|
| 10,4 | 10,4 | 58,0 | 12,0 | 118,0 |
|
|
| 10,5 | 10,5 | 58,0 | 12,0 | 118,0 |
|
|
| 10,6 | 10,6 | 58,0 | 12,0 | 118,0 |
|
|
| 10,7 | 10,7 | 58,0 | 12,0 | 118,0 |
|
|
| 10,8 | 10,8 | 58,0 | 12,0 | 118,0 |
|
|
| 10,9 | 10,9 | 58,0 | 12,0 | 118,0 |
|
|
| 11 | 11,0 | 58,0 | 12,0 | 118,0 |
|
|
| 11/32 | 8,731 | 51,0 | 10,0 | 103,0 |
|
|
| 11,1 | 11,1 | 58,0 | 12,0 | 118,0 |
|
|
| 11,2 | 11,2 | 58,0 | 12,0 | 118,0 |
|
|
| 11,3 | 11,3 | 58,0 | 12,0 | 118,0 |
|
|
| 11,4 | 11,4 | 58,0 | 12,0 | 118,0 |
|
|
| 11,5 | 11,5 | 58,0 | 12,0 | 118,0 |
|
|
| 11,6 | 11,6 | 58,0 | 12,0 | 118,0 |
|
|
| 11,7 | 11,7 | 58,0 | 12,0 | 118,0 |
|
|
| 11,8 | 11,8 | 58,0 | 12,0 | 118,0 |
|
|
| 11,9 | 11,9 | 58,0 | 12,0 | 118,0 |
|
|
| 12 | 12,0 | 58,0 | 12,0 | 118,0 |
|
|
| 12,2 | 12,2 | 62,0 | 14,0 | 124,0 |
|
|
| 12,5 | 12,5 | 62,0 | 14,0 | 124,0 |
|
|
| 12,7 | 12,7 | 62,0 | 14,0 | 124,0 |
|
|
| 12,8 | 12,8 | 62,0 | 14,0 | 124,0 |
|
|
| 13 | 13,0 | 62,0 | 14,0 | 124,0 |
|
|
| 13/32 | 10,319 | 58,0 | 12,0 | 118,0 |
|
|
| 13,1 | 13,1 | 62,0 | 14,0 | 124,0 |
|
|
| 13,2 | 13,2 | 62,0 | 14,0 | 124,0 |
|
|
| 13,5 | 13,5 | 62,0 | 14,0 | 124,0 |
|
|
| 13,8 | 13,8 | 62,0 | 14,0 | 124,0 |
|
|
| 14 | 14,0 | 62,0 | 14,0 | 124,0 |
|
