K201313 | SC end mill cutter long TiAlN MTC / HPC

Premium
No Weldon High Performance Cutting Multi-Task Cutting Universal machining Trimming Full slot
Cooling air-colled dry water min water max
Tolerance e8
Coating TiAlN -
K201313
K201313
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
220 190 160
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
80
Castings
160
Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

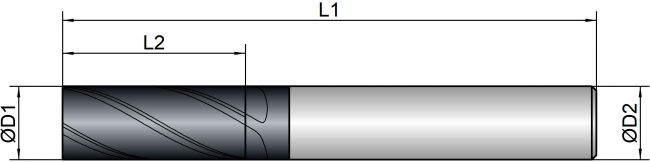

K201313
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
2/2 2.0 7.0 38.0 2.0 4 30 green
2/6 2.0 7.0 58.0 6.0 4 30 green
3/3 3.0 10.0 38.0 3.0 4 30 green
3/6 3.0 10.0 58.0 6.0 4 30 green
4/4 4.0 13.0 50.0 4.0 4 30 green
4/6 4.0 13.0 58.0 6.0 4 30 green
5/5 5.0 15.0 50.0 5.0 4 30 green
5/6 5.0 15.0 58.0 6.0 4 30 green
6/6 6.0 16.0 58.0 6.0 4 30 green
7/8 7.0 19.0 64.0 8.0 4 30 green
8/8 8.0 22.0 70.0 8.0 4 30 green
9/10 9.0 23.0 73.0 10.0 4 30 green
10/10 10.0 25.0 73.0 10.0 4 30 green
11/12 11.0 26.0 84.0 12.0 4 30 green
12/12 12.0 28.0 84.0 12.0 4 30 green
14/14 14.0 30.0 84.0 14.0 4 30 green
16/16 16.0 35.0 93.0 16.0 4 30 green
18/18 18.0 35.0 93.0 18.0 4 30 green
20/20 20.0 40.0 104.0 20.0 4 30 green
