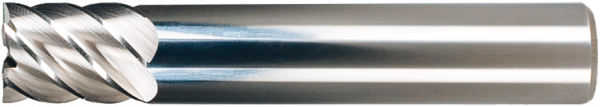

K201581 | SC end mill cutter short

Premium
No Weldon Universal machining Trimming Full slot
Cooling air-colled dry water min water max
Tolerance e8
Coating
K201581
K201581
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
70 40 30
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
45
Castings
60
Non-ferrous materials
Al Copper Mg Plastics
150
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

K201581

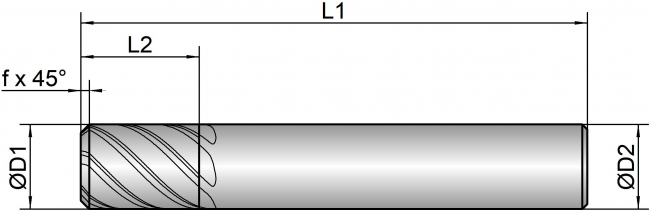

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
eckfase_laenge
spiralwinkel
5 5.0 8.0 54.0 6.0 6 0.02 45 green
6 6.0 10.0 54.0 6.0 6 0.03 45 green
7 7.0 12.0 59.0 8.0 6 0.04 45 green
8 8.0 12.0 59.0 8.0 6 0.04 45 green
9 9.0 14.0 60.0 10.0 6 0.04 45 green
10 10.0 14.0 60.0 10.0 6 0.05 45 green
12 12.0 16.0 70.0 12.0 6 0.05 45 green
14 14.0 18.0 70.0 14.0 6 0.06 45 green
16 16.0 20.0 80.0 16.0 6 0.06 45 green
18 18.0 20.0 80.0 18.0 8 0.07 45 green
20 20.0 25.0 85.0 20.0 8 0.07 45 green
