K203418 | SC full radius cutter long TiSiN HSC / HPC

Expert
No Weldon High Speed Cutting High Performance Cutting Multipass milling
Cooling air-cooled dry water min water max
Tolerance f8
Coating TiSiN -
K203418
K203418
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
190 150 140
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
90
Castings
340
Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

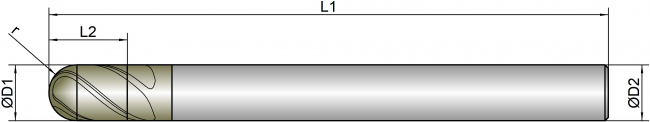

K203418
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
3 3.0 5.0 83.0 6.0 4 1.50 40 green
4 4.0 8.0 83.0 6.0 4 2.00 40 green
5 5.0 9.0 83.0 6.0 4 2.50 40 green
6 6.0 10.0 83.0 6.0 4 3.00 40 green
8 8.0 12.0 100.0 8.0 4 4.00 40 green
10 10.0 14.0 100.0 10.0 4 5.00 40 green
12 12.0 16.0 100.0 12.0 4 6.00 40 green
16 16.0 22.0 150.0 16.0 4 8.00 40 green
