K206093 | SC roughing cutter long TiAlN MTC

Premium
No Weldon Multi-Task Cutting Universal machining Serrated edge
Cooling air-colled dry water min water max
Tolerance d11
Coating TiAlN -
K206093
K206093
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
175 150 125
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
60
Castings
125
Non-ferrous materials
Al Copper Mg Plastics

Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium
40

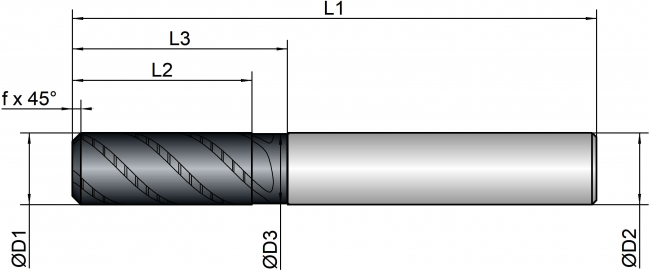

K206093
D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
eckfase_laenge
spiralwinkel
6 6.0 5.8 16.0 21.0 58.0 6.0 4 0.15 45 green
8 8.0 7.7 22.0 27.0 70.0 8.0 4 0.20 45 green
10 10.0 9.7 25.0 30.0 73.0 10.0 4 0.20 45 green
12 12.0 11.6 28.0 38.0 84.0 12.0 4 0.25 45 green
14 14.0 13.6 30.0 40.0 84.0 14.0 4 0.25 45 green
16 16.0 15.5 36.0 45.0 93.0 16.0 5 0.35 45 green
18 18.0 17.5 36.0 45.0 93.0 18.0 5 0.35 45 green
20 20.0 19.5 41.0 55.0 104.0 20.0 5 0.40 45 orange
25 25.0 24.0 50.0 65.0 125.0 25.0 5 0.50 45 orange
